Specifications: Toyota FJ Cruiser 4.0 V6 (260 Hp) 4WD Automatic 2010, 2011, 2012, 2013, 2014

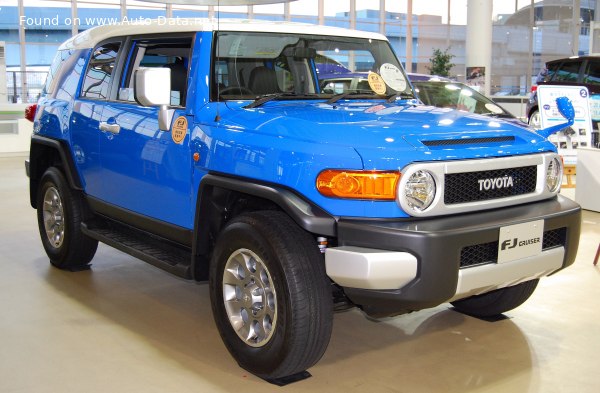

2006 Toyota FJ Cruiser - Photo 1

Toyota FJ Cruiser 4.0 V6 (260 Hp) 4WD Automatic – Full specifications
General information
Brand Toyota
Model FJ Cruiser
Generation FJ Cruiser
Modification (Engine) 4.0 V6 (260 Hp) 4WD Automatic
Start of production 2010 year
End of production 2014 year
Powertrain Architecture Internal Combustion engine
Body type Off-road vehicle, SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 13.8 l/100 km
17.04 US mpg
20.47 UK mpg
7.25 km/l
Fuel consumption (economy) – extra urban 11.2 l/100 km
21 US mpg
25.22 UK mpg
8.93 km/l
Fuel Type Petrol (Gasoline)
Emission standard LEV-II
Weight-to-power ratio 7.6 kg/Hp, 132 Hp/tonne
Weight-to-torque ratio 5.4 kg/Nm, 186.3 Nm/tonne
Engine specs
Power 260 Hp @ 5600 rpm.
Power per litre 65.7 Hp/l
Torque 367 Nm @ 4400 rpm.
270.69 lb.-ft. @ 4400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1GR-FE
Engine displacement 3956 cm3
241.41 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 94 mm
3.7 in.
Piston Stroke 95 mm
3.74 in.
Compression ratio 10.4:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, Dual VVT-i
Engine oil capacity 6.1 l
6.45 US qt | 5.37 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.8 l
10.36 US qt | 8.62 UK qt

Space, Volume and weights
Kerb Weight 1970 kg
4343.11 lbs.
Max. weight 2527 kg
5571.08 lbs.
Max load 557 kg
1227.97 lbs.
Trunk (boot) space – minimum 790 l
27.9 cu. ft.
Trunk (boot) space – maximum 1892 l
66.82 cu. ft.
Fuel tank capacity 72 l
19.02 US gal | 15.84 UK gal
Permitted trailer load with brakes (12%) 2268 kg
5000.08 lbs.
Dimensions
Length 4671 mm
183.9 in.
Width 1905 mm
75 in.
Height 1829 mm
72.01 in.
Wheelbase 2690 mm
105.91 in.
Front track 1605 mm
63.19 in.
Rear (Back) track 1615 mm
63.58 in.
Ride height (ground clearance) 244 mm
9.61 in.
Minimum turning circle (turning diameter) 12.4 m
40.68 ft.
Approach angle 34°
Departure angle 31°
Ramp-over (brakeover) angle 27°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, automatic transmission ECT-i
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Disc
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 265/70 R17
Wheel rims size 7.5J x 17
