| General information | |
|---|---|

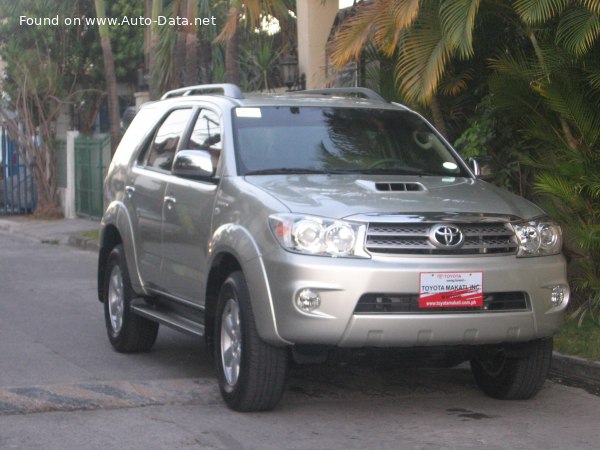

| Brand | Toyota |
| Model | Fortuner |
| Generation | Fortuner I (facelift 2008) |
| Modification (Engine) | 2.5 D-4D (102 Hp) |
| Start of production | 2008 year |
| End of production | 2011 year |
| Powertrain Architecture | Internal Combustion engine |
| Body type | SUV |
| Seats | 7 |
| Doors | 5 |
| Performance specs | |
| Fuel Type | Diesel |
| Weight-to-power ratio | 17.5 kg/Hp, 57 Hp/tonne |
| Weight-to-torque ratio | 6.9 kg/Nm, 145.3 Nm/tonne |
| Engine specs | |
| Power | 102 Hp @ 3600 rpm. |
| Power per litre | 40.9 Hp/l |
| Torque | 260 Nm @ 1600-2400 rpm. 191.77 lb.-ft. @ 1600-2400 rpm. |
| Engine layout | Front, Longitudinal |
| Engine Model/Code | 2KD-FTV |
| Engine displacement | 2494 cm3 152.19 cu. in. |
| Number of cylinders | 4 |
| Engine configuration | Inline |
| Cylinder Bore | 92 mm 3.62 in. |
| Piston Stroke | 93.8 mm 3.69 in. |
| Number of valves per cylinder | 4 |
| Fuel injection system | Diesel Commonrail |
| Engine aspiration | Turbocharger |
| Valvetrain | DOHC |
| Engine oil capacity | 6.9 l 7.29 US qt | 6.07 UK qt |
| Engine oil specification |  Log in to see. |
| Coolant | 9.8 l 10.36 US qt | 8.62 UK qt |
|
|
|
| Space, Volume and weights | |
| Kerb Weight | 1790 kg 3946.27 lbs. |
| Max. weight | 2380 kg 5247 lbs. |
| Max load | 590 kg 1300.73 lbs. |
| Fuel tank capacity | 80 l 21.13 US gal | 17.6 UK gal |
| Dimensions | |
| Length | 4695 mm 184.84 in. |
| Width | 1840 mm 72.44 in. |
| Height | 1850 mm 72.83 in. |
| Wheelbase | 2750 mm 108.27 in. |
| Front track | 1540 mm 60.63 in. |
| Rear (Back) track | 1540 mm 60.63 in. |
| Ride height (ground clearance) | 221 mm 8.7 in. |
| Minimum turning circle (turning diameter) | 11.8 m 38.71 ft. |
| Approach angle | 30° |
| Departure angle | 25° |
| Ramp-over (brakeover) angle | 23° |
| Drivetrain, brakes and suspension specs | |
| Drivetrain Architecture | The Internal combustion engine (ICE) drives the rear wheels of the vehicle. |
| Drive wheel | Rear wheel drive |
| Number of gears and type of gearbox | 5 gears, manual transmission |
| Front suspension | Coil spring, Double wishbone, Transverse stabilizer |
| Rear suspension | Rigid axle suspension, Coil spring |
| Front brakes | Ventilated discs |
| Rear brakes | Drum |
| Assisting systems | ABS (Anti-lock braking system) |
| Steering type | Steering rack and pinion |
| Power steering | Hydraulic Steering |
| Tires size | 265/65 R17 |
| Wheel rims size | 7.5J x 17 |
Related articles
Specifications: Jaguar E-Pace (facelift 2020) 2.0i (200 Hp) Mild Hybrid AWD Automatic 2020, 2021, 2022
Specifications: Jaguar F-Pace 2.0d (163 Hp) 2017, 2018- Specifications: Jaguar F-Pace 30d V6 (300 Hp) AWD Automatic 2019, 2020
Specifications: Jaguar F-type Convertible (facelift 2017) 2.0 (300 Hp) Automatic 2017, 2018
Specifications: Nissan Maxima QX IV (A32) 2.0 (140 Hp) 1995, 1996, 1997, 1998, 1999, 2000
Specifications: Nissan Maxima QX V (A33) 3.5 i V6 24V (255 Hp) 2002, 2003, 2004
Specifications: Nissan Micra (K11) 1.0i 16V (54 Hp) CVT 1992, 1993, 1994, 1995, 1996, 1997, 1998, 1999, 2000
Specifications: Nissan Micra (K13) 1.2 (80 Hp) CVT 2010, 2011, 2012, 2013
Specifications: Audi 100 (C3, Typ 44,44Q) 2.3 E (136 Hp) 1986, 1987
Specifications: Audi 100 (C3, Typ 44,44Q, facelift 1988) 2.4 D (82 Hp) 1989, 1990
Specifications: Audi 200 (C3, Typ 44,44Q) 2.1 Turbo (182 Hp) 1983, 1984, 1985, 1986, 1987, 1988
Specifications: Audi 50 (Typ 86) 1.1 GL (60 Hp) 1974, 1975, 1976, 1977
Specifications: Audi R8 Coupe (42) GT 5.2 V10 (560 Hp) quattro R tronic 2011, 2012

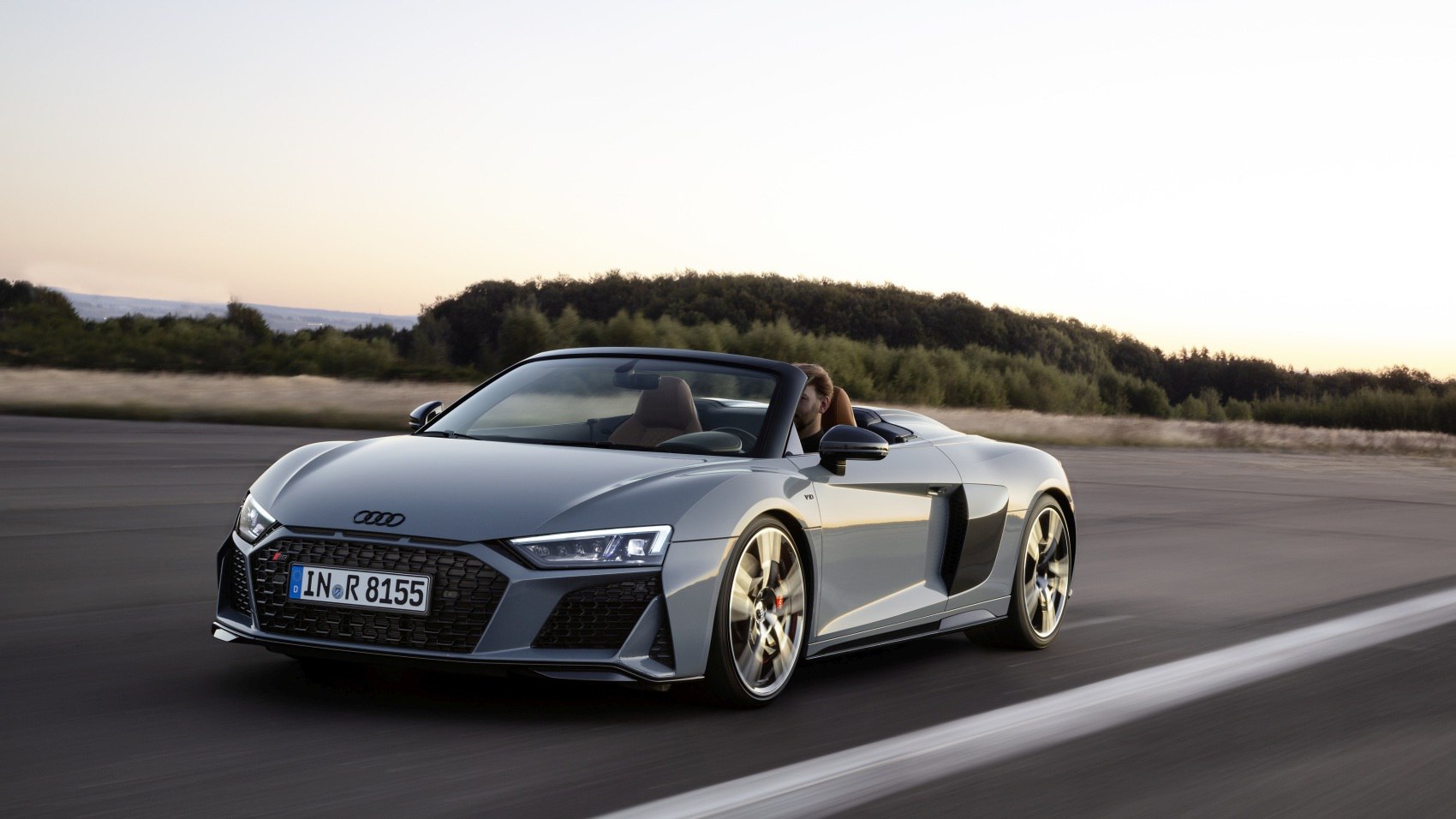

Specifications: Audi R8 II Spyder (4S, facelift 2019) 5.2 FSI V10 (570 Hp) quattro S tronic 2019, 2020, 2021
