Specifications: Toyota Harrier I (XU10) 2.2i 16V (140 Hp) Automatic 1997, 1998, 1999, 2000

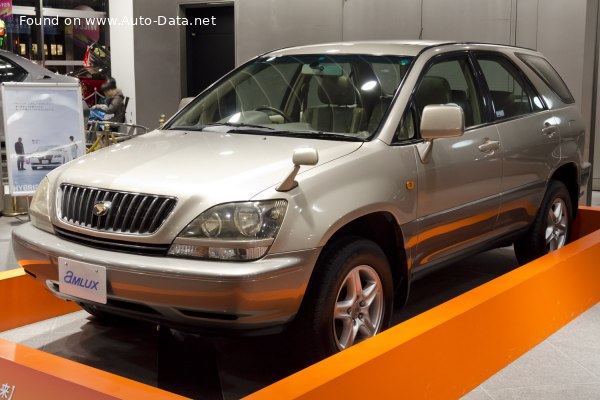

1999 Toyota Harrier I (XU10) - Photo 1

Toyota Harrier I (XU10) 2.2i 16V (140 Hp) Automatic – Full specifications
General information
Brand Toyota
Model Harrier
Generation Harrier I (XU10)
Modification (Engine) 2.2i 16V (140 Hp) Automatic
Start of production 1997 year
End of production 2000 year
Powertrain Architecture Internal Combustion engine
Body type SUV, Crossover
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 10.5 l/100 km
22.4 US mpg
26.9 UK mpg
9.52 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 11.4 kg/Hp, 88.1 Hp/tonne
Weight-to-torque ratio 8.2 kg/Nm, 122.6 Nm/tonne
Engine specs
Power 140 Hp @ 5600 rpm.
Power per litre 64.6 Hp/l
Torque 195 Nm @ 4400 rpm.
143.82 lb.-ft. @ 4400 rpm.
Engine layout Front, Transverse
Engine Model/Code 5S-FE
Engine displacement 2166 cm3
132.18 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 87 mm
3.43 in.
Piston Stroke 91 mm
3.58 in.
Compression ratio 9.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.6 l
3.8 US qt | 3.17 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.3 l
8.77 US qt | 7.3 UK qt

Space, Volume and weights
Kerb Weight 1590 kg
3505.35 lbs.
Trunk (boot) space – minimum 860 l
30.37 cu. ft.
Trunk (boot) space – maximum 2130 l
75.22 cu. ft.
Fuel tank capacity 65 l
17.17 US gal | 14.3 UK gal
Dimensions
Length 4575 mm
180.12 in.
Width 1815 mm
71.46 in.
Height 1665 mm
65.55 in.
Wheelbase 2615 mm
102.95 in.
Front track 1565 mm
61.61 in.
Rear (Back) track 1550 mm
61.02 in.
Ride height (ground clearance) 185 mm
7.28 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Spring Strut
Rear suspension Trailing arm
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/70 R16 99S
Wheel rims size 6.5J x 16 ET35
