Specifications: Toyota Harrier IV (XU80) 2.5 (218 Hp) Hybrid e-CVT 2020, 2021, 2022, 2023, 2024, 2025

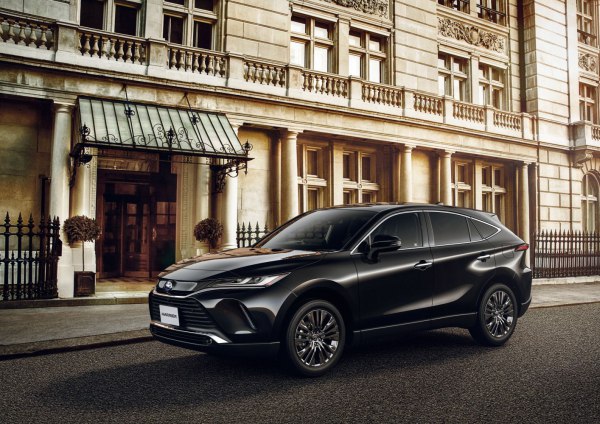

2021 Toyota Harrier IV (XU80) - Photo 1

Toyota Harrier IV (XU80) 2.5 (218 Hp) Hybrid e-CVT – Full specifications
General information
Brand Toyota
Model Harrier
Generation Harrier IV (XU80)
Modification (Engine) 2.5 (218 Hp) Hybrid e-CVT
Start of production June, 2020 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.1 l/100 km
46.12 US mpg
55.39 UK mpg
19.61 km/l
Fuel consumption (economy) – extra urban 4.5 l/100 km
52.27 US mpg
62.77 UK mpg
22.22 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.4 kg/Hp, 134.6 Hp/tonne
Weight-to-torque ratio 7.3 kg/Nm, 136.4 Nm/tonne
Electric cars and hybrids specs
Battery technology Lithium-ion (Li-Ion)
Electric motor 1
Electric motor power 120 Hp
Electric motor Torque 202 Nm

148.99 lb.-ft.
Electric motor model/code 3NM
Electric motor type Synchronous
System power 218 Hp
Internal combustion engine specs
Power 178 Hp @ 5700 rpm.
Power per litre 71.6 Hp/l
Torque 221 Nm @ 3600-5200 rpm.
163 lb.-ft. @ 3600-5200 rpm.
Engine layout Front, Transverse
Engine Model/Code A25A-FXS
Engine displacement 2487 cm3
151.77 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 87.5 mm
3.44 in.
Piston Stroke 103.4 mm
4.07 in.
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.7 l
7.08 US qt | 5.9 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1620-1690 kg
3571.49 – 3725.81 lbs.
Max. weight 1965 kg
4332.08 lbs.
Max load 275-345 kg
606.27 – 760.59 lbs.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4740 mm
186.61 in.
Width 1855 mm
73.03 in.
Height 1660 mm
65.35 in.
Wheelbase 2690 mm
105.91 in.
Front track 1605 mm
63.19 in.
Rear (Back) track 1625 mm
63.98 in.
Ride height (ground clearance) 190 mm
7.48 in.
Minimum turning circle (turning diameter) 11-11.4 m
36.09 – 37.4 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission e-CVT
Front suspension Independent type McPherson
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/55 R19
Wheel rims size 19
