Specifications: Toyota HiAce VI (H300) Commuter L2H2 2.8 D-4D (163 Hp) Automatic 2019, 2020, 2021, 2022, 2023, 2024, 2025

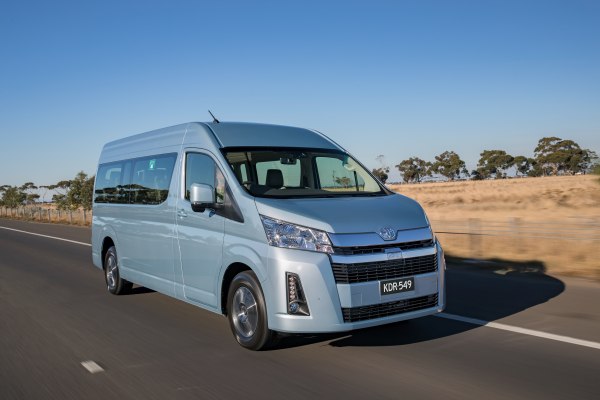

2019 Toyota HiAce VI (H300) Commuter L2H2 - Photo 1

Toyota HiAce VI (H300) Commuter L2H2 2.8 D-4D (163 Hp) Automatic – Full specifications
General information
Brand Toyota
Model HiAce
Generation HiAce VI (H300) Commuter L2H2
Modification (Engine) 2.8 D-4D (163 Hp) Automatic
Start of production 2019 year
Powertrain Architecture Internal Combustion engine
Body type Van
Seats 10-17
Doors 4-5
Performance specs
Fuel Type Diesel
Weight-to-power ratio 16 kg/Hp, 62.3 Hp/tonne
Weight-to-torque ratio 6.2 kg/Nm, 160.6 Nm/tonne
Engine specs
Power 163 Hp @ 3600 rpm.
Power per litre 59.2 Hp/l
Torque 420 Nm @ 1600-2200 rpm.
309.78 lb.-ft. @ 1600-2200 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1GD-FTV
Engine displacement 2755 cm3
168.12 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 92 mm
3.62 in.
Piston Stroke 103.6 mm
4.08 in.
Compression ratio 15.6:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7.1 l
7.5 US qt | 6.25 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.7 l
10.25 US qt | 8.53 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2615-2680 kg
5765.09 – 5908.39 lbs.
Max. weight 3710-3720 kg
8179.15 – 8201.2 lbs.
Max load 1040-1095 kg
2292.81 – 2414.06 lbs.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 400 kg
881.85 lbs.
Permitted towbar download 150 kg
330.69 lbs.
Dimensions
Length 5915 mm
232.87 in.
Width 1950 mm
76.77 in.
Height 2280 mm
89.76 in.
Wheelbase 3860 mm
151.97 in.
Front track 1670-1675 mm
65.75 – 65.94 in.
Rear (Back) track 1670 mm
65.75 in.
Front overhang 950 mm
37.4 in.
Rear overhang 1105 mm
43.5 in.
Minimum turning circle (turning diameter) 12.8 m
41.99 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Rigid axle suspension, Leaf spring
Front brakes Ventilated discs, 296 mm
Rear brakes Ventilated discs, 320 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/70 R16
Wheel rims size 7J x 16
