Specifications: Toyota HiAce VI (H300) Crew Van L1H1 2.8 D-4D (177 Hp) Automatic 2019, 2020, 2021, 2022, 2023, 2024, 2025

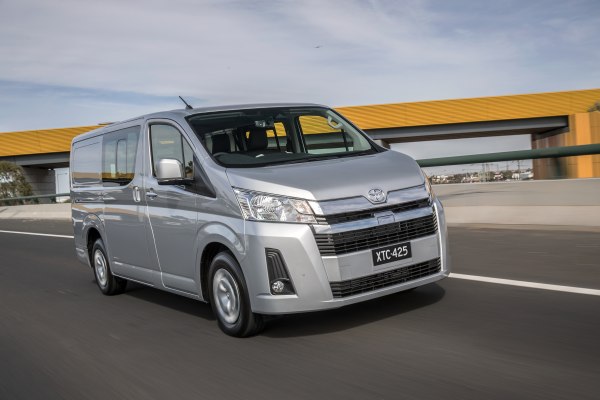

2019 Toyota HiAce VI (H300) Crew Van L1H1 - Photo 1

Toyota HiAce VI (H300) Crew Van L1H1 2.8 D-4D (177 Hp) Automatic – Full specifications
General information
Brand Toyota
Model HiAce
Generation HiAce VI (H300) Crew Van L1H1
Modification (Engine) 2.8 D-4D (177 Hp) Automatic
Start of production 2019 year
Powertrain Architecture Internal Combustion engine
Body type Van
Seats 5-6
Doors 5
Performance specs
Fuel consumption (economy) – urban 9.8 l/100 km
24 US mpg
28.82 UK mpg
10.2 km/l
Fuel consumption (economy) – extra urban 7.5 l/100 km
31.36 US mpg
37.66 UK mpg
13.33 km/l
Fuel consumption (economy) – combined 8.4 l/100 km
28 US mpg
33.63 UK mpg
11.9 km/l
CO2 emissions 219 g/km
Fuel Type Diesel
Maximum speed 165 km/h
102.53 mph
Weight-to-power ratio 13 kg/Hp, 76.8 Hp/tonne
Weight-to-torque ratio 5.1 kg/Nm, 195.2 Nm/tonne
Engine specs
Power 177 Hp @ 3400 rpm.
Power per litre 64.2 Hp/l
Torque 450 Nm @ 1600-2400 rpm.
331.9 lb.-ft. @ 1600-2400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1GD-FTV
Engine displacement 2755 cm3
168.12 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 92 mm
3.62 in.
Piston Stroke 103.6 mm
4.08 in.
Compression ratio 15.6:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7.1 l
7.5 US qt | 6.25 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.7 l
10.25 US qt | 8.53 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2305 kg
5081.66 lbs.
Max. weight 3300 kg
7275.25 lbs.
Max load 995 kg
2193.6 lbs.
Trunk (boot) space – maximum 3600 l
127.13 cu. ft.
Fuel tank capacity 70 l
18.49 US gal | 15.4 UK gal
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 400 kg
881.85 lbs.
Permitted towbar download 150 kg
330.69 lbs.
Dimensions
Length 5265 mm
207.28 in.
Width 1950 mm
76.77 in.
Height 1990 mm
78.35 in.
Wheelbase 3210 mm
126.38 in.
Front track 1670-1675 mm
65.75 – 65.94 in.
Rear (Back) track 1670 mm
65.75 in.
Front overhang 950 mm
37.4 in.
Rear overhang 1105 mm
43.5 in.
Minimum turning circle (turning diameter) 11 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Rigid axle suspension, Leaf spring
Front brakes Ventilated discs, 296 mm
Rear brakes Ventilated discs, 320 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/70 R16
Wheel rims size 7J x 16
