Specifications: Toyota Highlander III (facelift 2016) 2.7 (188 Hp) Automatic 2016, 2017, 2018, 2019

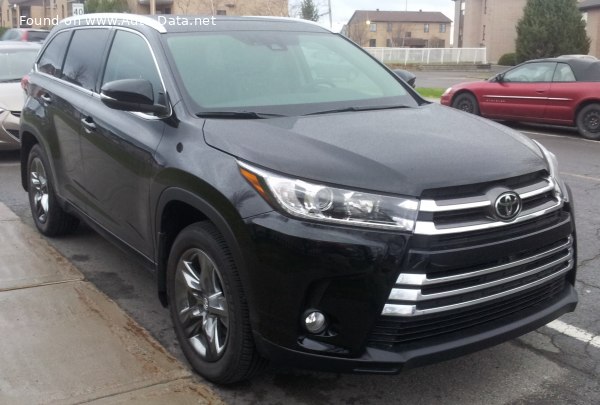

2017 Toyota Highlander III (facelift 2016) - Photo 1

Toyota Highlander III (facelift 2016) 2.7 (188 Hp) Automatic – Full specifications
General information
Brand Toyota
Model Highlander
Generation Highlander III (facelift 2016)
Modification (Engine) 2.7 (188 Hp) Automatic
Start of production 2016 year
End of production 2019 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban 11.8 l/100 km
19.93 US mpg
23.94 UK mpg
8.47 km/l
Fuel consumption (economy) – extra urban 9.8 l/100 km
24 US mpg
28.82 UK mpg
10.2 km/l
Fuel consumption (economy) – combined 10.7 l/100 km
21.98 US mpg
26.4 UK mpg
9.35 km/l
Fuel Type Petrol (Gasoline)
Emission standard Euro 5
Weight-to-power ratio 10.1 kg/Hp, 99.5 Hp/tonne
Weight-to-torque ratio 7.5 kg/Nm, 133.3 Nm/tonne
Engine specs
Power 188 Hp @ 5800 rpm.
Power per litre 70.4 Hp/l
Torque 252 Nm @ 4200 rpm.
185.87 lb.-ft. @ 4200 rpm.
Engine layout Front, Transverse
Engine Model/Code 1AR-FE
Engine displacement 2672 cm3
163.06 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 90 mm
3.54 in.
Piston Stroke 105 mm
4.13 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, D-VVT-i
Engine oil capacity 4.4 l
4.65 US qt | 3.87 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.4 l
9.93 US qt | 8.27 UK qt

Space, Volume and weights
Kerb Weight 1890 kg
4166.74 lbs.
Max. weight 2570 kg
5665.88 lbs.
Max load 680 kg
1499.14 lbs.
Trunk (boot) space – minimum 269 l
9.5 cu. ft.
Trunk (boot) space – maximum 813 l
28.71 cu. ft.
Fuel tank capacity 72 l
19.02 US gal | 15.84 UK gal
Dimensions
Length 4890 mm
192.52 in.
Width 1925 mm
75.79 in.
Height 1770 mm
69.69 in.
Wheelbase 2790 mm
109.84 in.
Front track 1635 mm
64.37 in.
Rear (Back) track 1650 mm
64.96 in.
Ride height (ground clearance) 200 mm
7.87 in.
Drag coefficient (Cd) 0.34
Approach angle 18.0°
Departure angle 23.1°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent coil spring
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/60 R18; 245/55 R19
Wheel rims size 18; 19
