Specifications: Toyota Highlander IV 2.5 (243 Hp) Hybrid AWD e-CVT 2020, 2021, 2022, 2023, 2024, 2025

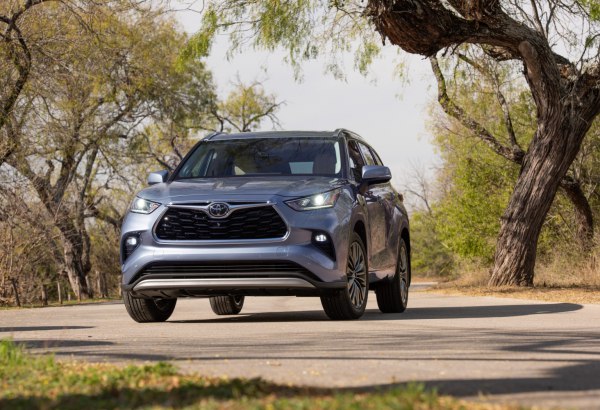

2020 Toyota Highlander IV - Photo 1

Toyota Highlander IV 2.5 (243 Hp) Hybrid AWD e-CVT – Full specifications
General information
Brand Toyota
Model Highlander
Generation Highlander IV
Modification (Engine) 2.5 (243 Hp) Hybrid AWD e-CVT
Start of production 2020 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV
Seats 7-8
Doors 5
Performance specs
Fuel consumption (economy) – urban 6.7 l/100 km
35.11 US mpg
42.16 UK mpg
14.93 km/l
Fuel consumption (economy) – extra urban 6.7-6.9 l/100 km
35.11 – 34.09 US mpg
42.16 – 40.94 UK mpg
14.93 – 14.49 km/l
Fuel consumption (economy) – combined 6.7 l/100 km
35.11 US mpg
42.16 UK mpg
14.93 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 8.3 kg/Hp, 120 Hp/tonne
Weight-to-torque ratio 8.5 kg/Nm, 117 Nm/tonne
Electric cars and hybrids specs
Battery voltage 288 V
Battery technology Nickel-metal hydride (NiMH)
Battery location Under the rear seats
Electric motor 1
Electric motor power 182 Hp
Electric motor Torque 270 Nm

199.14 lb.-ft.
Electric motor location Integrated into the transmission
Electric motor type Synchronous
Electric motor 2
Electric motor power 54 Hp
Electric motor Torque 121 Nm

89.25 lb.-ft.
Electric motor location Rear axle, Transverse
Electric motor type Synchronous
System power 243 Hp
Internal combustion engine specs
Power 186 Hp @ 6000 rpm.
Power per litre 74.8 Hp/l
Torque 237 Nm @ 4400 rpm.
174.8 lb.-ft. @ 4400 rpm.
Engine layout Front, Transverse
Engine Model/Code A25A-FXS
Engine displacement 2487 cm3
151.77 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 87.5 mm
3.44 in.
Piston Stroke 103.4 mm
4.07 in.
Compression ratio 14:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.9 l
10.46 US qt | 8.71 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 2025-2084 kg
4464.36 – 4594.43 lbs.
Max. weight 2722 kg
6000.98 lbs.
Max load 638-697 kg
1406.55 – 1536.62 lbs.
Trunk (boot) space – minimum 453 l
16 cu. ft.
Trunk (boot) space – maximum 2387 l
84.3 cu. ft.
Fuel tank capacity 65 l
17.17 US gal | 14.3 UK gal
Permitted trailer load with brakes (12%) 1588 kg
3500.94 lbs.
Dimensions
Length 4950 mm
194.88 in.
Width 1930 mm
75.98 in.
Height 1730 mm
68.11 in.
Wheelbase 2850 mm
112.2 in.
Front track 1659 mm
65.31 in.
Rear (Back) track 1661 mm
65.39 in.
Ride height (ground clearance) 203 mm
7.99 in.
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Approach angle 18.1°
Departure angle 22.7°
Drivetrain, brakes and suspension specs
Drivetrain Architecture An Internal combustion engine (ICE) drives the front wheels, one electric motor drives the front wheels, one electric motor drives the rear wheels. There is an ability for running in full electric or mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox automatic transmission e-CVT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Independent multi-link spring suspension with stabilizer
Front brakes Ventilated discs, 338 mm
Rear brakes Disc, 338 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/65 R18; 235/55 R20
Wheel rims size 8J x 18; 8J x 20
