Specifications: Toyota Hilux Double Cab VII (facelift 2008) 3.0 D-4D (171 Hp) 4×4 2008, 2009, 2010, 2011

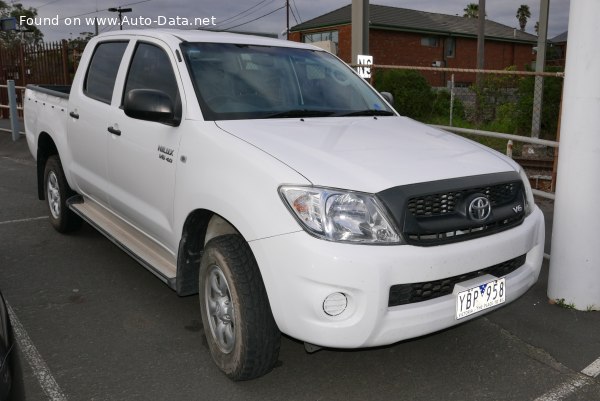

2009 Toyota Hilux Double Cab VII (facelift 2008) - Photo 1

Toyota Hilux Double Cab VII (facelift 2008) 3.0 D-4D (171 Hp) 4×4 – Full specifications
General information
Brand Toyota
Model Hilux
Generation Hilux Double Cab VII (facelift 2008)
Modification (Engine) 3.0 D-4D (171 Hp) 4×4
Start of production 2008 year
End of production 2011 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (NEDC) 10.3 l/100 km
22.84 US mpg
27.43 UK mpg
9.71 km/l
Fuel consumption (economy) – extra urban (NEDC) 7.1 l/100 km
33.13 US mpg
39.79 UK mpg
14.08 km/l
Fuel consumption (economy) – combined (NEDC) 8.3 l/100 km
28.34 US mpg
34.03 UK mpg
12.05 km/l
CO2 emissions (NEDC) 219 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 12 sec
Acceleration 0 – 62 mph 12 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.4 sec
Maximum speed 170 km/h
105.63 mph
Emission standard Euro 4
Weight-to-power ratio 11.5 kg/Hp, 86.8 Hp/tonne
Weight-to-torque ratio 5.7 kg/Nm, 174.1 Nm/tonne
Engine specs
Power 171 Hp @ 3600 rpm.
Power per litre 57.3 Hp/l
Torque 343 Nm @ 1400-3200 rpm.
252.98 lb.-ft. @ 1400-3200 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1KD-FTV
Engine displacement 2982 cm3
181.97 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 96 mm
3.78 in.
Piston Stroke 103 mm
4.06 in.
Compression ratio 17.9:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 6.9 l
7.29 US qt | 6.07 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9 l
9.51 US qt | 7.92 UK qt

Space, Volume and weights
Kerb Weight 1970 kg
4343.11 lbs.
Max. weight 2760 kg
6084.76 lbs.
Max load 790 kg
1741.65 lbs.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Max. roof load 50 kg
110.23 lbs.
Permitted trailer load with brakes (12%) 2250 kg
4960.4 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 90 kg
198.42 lbs.
Dimensions
Length 5255 mm
206.89 in.
Width 1835 mm
72.24 in.
Height 1810 mm
71.26 in.
Wheelbase 3085 mm
121.46 in.
Front track 1540 mm
60.63 in.
Rear (Back) track 1540 mm
60.63 in.
Ride height (ground clearance) 292 mm
11.5 in.
Minimum turning circle (turning diameter) 13.2 m
43.31 ft.
Approach angle 30°
Departure angle 25°
Ramp-over (brakeover) angle 19°
Wading depth 700 mm
27.56 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Rigid axle suspension, Leaf spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 265/65 R17
Wheel rims size 7.5J x 17
