Specifications: Toyota Hilux Double Cab VIII (facelift 2020) 2.8 D-4D (204 Hp) 4×4 Automatic 2020, 2021, 2022, 2023, 2024

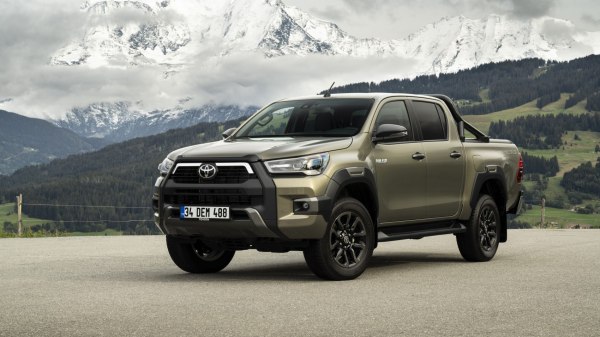

2020 Toyota Hilux Double Cab VIII (facelift 2020) - Photo 1

Toyota Hilux Double Cab VIII (facelift 2020) 2.8 D-4D (204 Hp) 4×4 Automatic – Full specifications
General information
Brand Toyota
Model Hilux
Generation Hilux Double Cab VIII (facelift 2020)
Modification (Engine) 2.8 D-4D (204 Hp) 4×4 Automatic
Start of production June, 2020 year
End of production February, 2024 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 5
Doors 4
Performance specs
Combined fuel consumption (WLTP) 8.8-10.1 l/100 km
26.73 – 23.29 US mpg
32.1 – 27.97 UK mpg
11.36 – 9.9 km/l
CO2 emissions (WLTP) 233-266 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 10.7 sec
Acceleration 0 – 62 mph 10.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.2 sec
Maximum speed 175 km/h
108.74 mph
Weight-to-power ratio 10.4 kg/Hp, 96 Hp/tonne
Weight-to-torque ratio 4.3 kg/Nm, 235.3 Nm/tonne
Engine specs
Power 204 Hp @ 3400 rpm.
Power per litre 74 Hp/l
Torque 500 Nm @ 1600-2800 rpm.
368.78 lb.-ft. @ 1600-2800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1GD-FTV
Engine displacement 2755 cm3
168.12 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 92 mm
3.62 in.
Piston Stroke 103.6 mm
4.08 in.
Compression ratio 15.6:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7.5 l
7.93 US qt | 6.6 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.7 l
10.25 US qt | 8.53 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2125-2340 kg
4684.82 – 5158.82 lbs.
Max. weight 3210 kg
7076.84 lbs.
Max load 870-1085 kg
1918.02 – 2392.02 lbs.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Permitted trailer load with brakes (12%) 3500 kg
7716.18 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 5325 mm
209.65 in.
Width 1855-1900 mm
73.03 – 74.8 in.
Height 1815 mm
71.46 in.
Wheelbase 3085 mm
121.46 in.
Front track 1535 mm
60.43 in.
Rear (Back) track 1550 mm
61.02 in.
Ride height (ground clearance) 293 mm
11.54 in.
Drag coefficient (Cd) 0.394
Minimum turning circle (turning diameter) 13.4 m
43.96 ft.
Approach angle 31°
Departure angle 26°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Leaf spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 265/65 R17; 265/60 R18
Wheel rims size 7.5J x 17; 7.5J x 18
