Specifications: Toyota Hilux Extra Cab VIII 2.4 D-4D (150 Hp) 4WD 2015, 2016, 2017

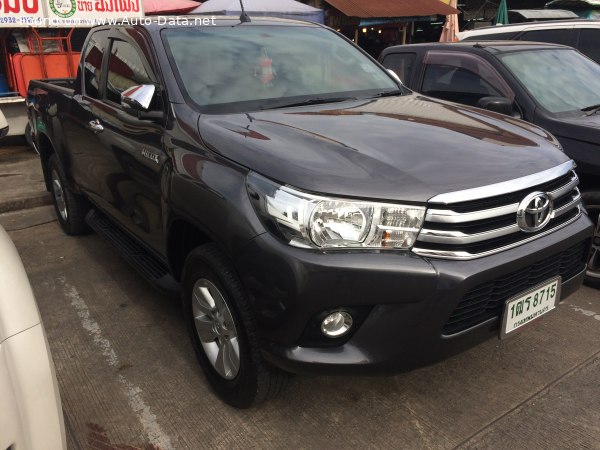

2016 Toyota Hilux Extra Cab VIII - Photo 1

Toyota Hilux Extra Cab VIII 2.4 D-4D (150 Hp) 4WD – Full specifications
General information
Brand Toyota
Model Hilux
Generation Hilux Extra Cab VIII
Modification (Engine) 2.4 D-4D (150 Hp) 4WD
Start of production 2015 year
End of production 2017 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 2
Doors 3
Performance specs
Fuel consumption (economy) – combined 6.8-7.0 l/100 km
34.59 – 33.6 US mpg
41.54 – 40.35 UK mpg
14.71 – 14.29 km/l
CO2 emissions 178-185 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 13.2 sec
Acceleration 0 – 62 mph 13.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.5 sec
Maximum speed 170 km/h
105.63 mph
Emission standard Euro 6
Weight-to-power ratio 12.8 kg/Hp, 78.3 Hp/tonne
Weight-to-torque ratio 4.8 kg/Nm, 208.9 Nm/tonne
Engine specs
Power 150 Hp @ 3400 rpm.
Power per litre 62.7 Hp/l
Torque 400 Nm @ 1600-2000 rpm.
295.02 lb.-ft. @ 1600-2000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 2GD-FTV
Engine displacement 2393 cm3
146.03 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 92 mm
3.62 in.
Piston Stroke 90 mm
3.54 in.
Compression ratio 15.6:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7.5 l
7.93 US qt | 6.6 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.9 l
9.4 US qt | 7.83 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1915-1965 kg
4221.85 – 4332.08 lbs.
Max. weight 3150 kg
6944.56 lbs.
Max load 1185-1235 kg
2612.48 – 2722.71 lbs.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Permitted trailer load with brakes (12%) 3500 kg
7716.18 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 5335 mm
210.04 in.
Width 1855 mm
73.03 in.
Height 1810 mm
71.26 in.
Wheelbase 3085 mm
121.46 in.
Front track 1535 mm
60.43 in.
Rear (Back) track 1550 mm
61.02 in.
Front overhang 1000 mm
39.37 in.
Rear overhang 1250 mm
49.21 in.
Ride height (ground clearance) 289 mm
11.38 in.
Drag coefficient (Cd) 0.394
Minimum turning circle (turning diameter) 13.4 m
43.96 ft.
Approach angle 31°
Departure angle 26°
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Double wishbone
Rear suspension Leaf spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 265/65 R17
Wheel rims size 7.5J x 17
