Specifications: Toyota Hilux Single Cab VII (facelift 2008) 2.5 D-4D (120 Hp) 2008, 2009, 2010, 2011

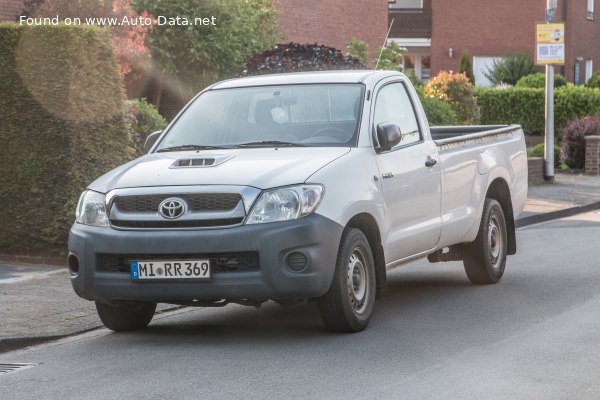

2009 Toyota Hilux Single Cab VII (facelift 2008) - Photo 1

Toyota Hilux Single Cab VII (facelift 2008) 2.5 D-4D (120 Hp) – Full specifications
General information
Brand Toyota
Model Hilux
Generation Hilux Single Cab VII (facelift 2008)
Modification (Engine) 2.5 D-4D (120 Hp)
Start of production 2008 year
End of production 2011 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – urban (NEDC) 9.6 l/100 km
24.5 US mpg
29.43 UK mpg
10.42 km/l
Fuel consumption (economy) – extra urban (NEDC) 6.2 l/100 km
37.94 US mpg
45.56 UK mpg
16.13 km/l
Fuel consumption (economy) – combined (NEDC) 7.4 l/100 km
31.79 US mpg
38.17 UK mpg
13.51 km/l
CO2 emissions (NEDC) 197 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 13.5 sec
Acceleration 0 – 62 mph 13.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.8 sec
Maximum speed 165 km/h
102.53 mph
Emission standard Euro 4
Weight-to-power ratio 13.8 kg/Hp, 72.3 Hp/tonne
Weight-to-torque ratio 5.1 kg/Nm, 195.8 Nm/tonne
Engine specs
Power 120 Hp @ 3600 rpm.
Power per litre 48.1 Hp/l
Torque 325 Nm @ 2000 rpm.
239.71 lb.-ft. @ 2000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 2KD-FTV
Engine displacement 2494 cm3
152.19 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 92 mm
3.62 in.
Piston Stroke 93.8 mm
3.69 in.
Compression ratio 17.4:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 6.9 l
7.29 US qt | 6.07 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9 l
9.51 US qt | 7.92 UK qt

Space, Volume and weights
Kerb Weight 1660 kg
3659.67 lbs.
Max. weight 2740 kg
6040.67 lbs.
Max load 1080 kg
2380.99 lbs.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Max. roof load 50 kg
110.23 lbs.
Permitted trailer load with brakes (12%) 1800 kg
3968.32 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 70 kg
154.32 lbs.
Dimensions
Length 5255 mm
206.89 in.
Width 1760 mm
69.29 in.
Height 1680 mm
66.14 in.
Wheelbase 3085 mm
121.46 in.
Front track 1510 mm
59.45 in.
Rear (Back) track 1510 mm
59.45 in.
Ride height (ground clearance) 203 mm
7.99 in.
Minimum turning circle (turning diameter) 12.6 m
41.34 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Rigid axle suspension, Leaf spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 205/70 R15
Wheel rims size 6J x 15
