Specifications: Toyota ISis 1.8 (132 Hp) 2004, 2005, 2006, 2007, 2008, 2009

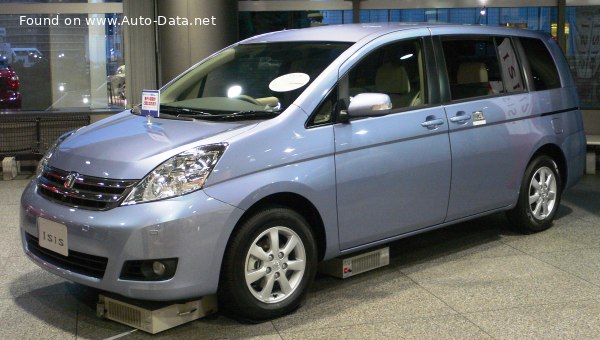

2004 Toyota ISis - Photo 1

Toyota ISis 1.8 (132 Hp) – Full specifications
General information
Brand Toyota
Model ISis
Generation ISis
Modification (Engine) 1.8 (132 Hp)
Start of production September, 2004 year
End of production December, 2009 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 7
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 10.6 kg/Hp, 94.3 Hp/tonne
Weight-to-torque ratio 8.2 kg/Nm, 122.1 Nm/tonne
Engine specs
Power 132 Hp @ 6000 rpm.
Power per litre 73.6 Hp/l
Torque 171 Nm @ 4200 rpm.
126.12 lb.-ft. @ 4200 rpm.
Engine layout Front, Transverse
Engine Model/Code 1ZZ-FE
Engine displacement 1794 cm3
109.48 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 79 mm
3.11 in.
Piston Stroke 91.5 mm
3.6 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.7 l
3.91 US qt | 3.26 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.4 l
6.76 US qt | 5.63 UK qt

Space, Volume and weights
Kerb Weight 1400 kg
3086.47 lbs.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4610 mm
181.5 in.
Width 1695 mm
66.73 in.
Height 1640 mm
64.57 in.
Wheelbase 2785 mm
109.65 in.
Minimum turning circle (turning diameter) 10.8 m
35.43 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Coil spring
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Tires size 195/65 R15
Wheel rims size 6J x 15
