Specifications: Toyota Izoa 2.0 (171 Hp) CVT 2018, 2019, 2020

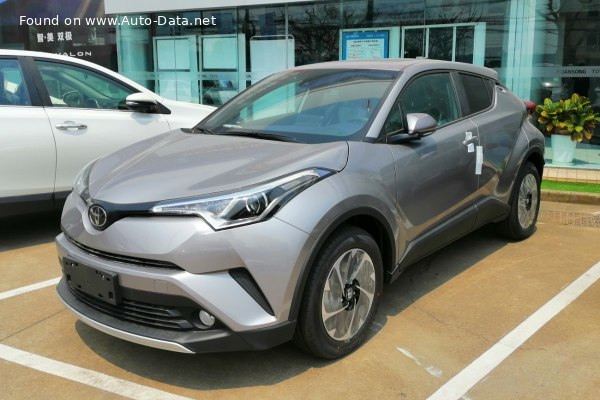

2018 Toyota Izoa - Photo 1

Toyota Izoa 2.0 (171 Hp) CVT – Full specifications
General information
Brand Toyota
Model Izoa
Generation Izoa
Modification (Engine) 2.0 (171 Hp) CVT
Start of production 2018 year
End of production 2020 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – combined 5.7 l/100 km
41.27 US mpg
49.56 UK mpg
17.54 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.3 sec
Acceleration 0 – 62 mph 10.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.8 sec
Maximum speed 185 km/h
114.95 mph
Emission standard China V/China VI
Weight-to-power ratio 8.7 kg/Hp, 114.8 Hp/tonne
Weight-to-torque ratio 7.3 kg/Nm, 136.2 Nm/tonne
Engine specs
Power 171 Hp @ 6600 rpm.
Power per litre 86.1 Hp/l
Torque 203 Nm @ 4400-4800 rpm.
149.73 lb.-ft. @ 4400-4800 rpm.
Engine layout Front, Transverse
Engine Model/Code M20A-FKS
Engine displacement 1987 cm3
121.25 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 80.5 mm
3.17 in.
Piston Stroke 97.6 mm
3.84 in.
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVT-iE
Engine oil capacity 4.6 l
4.86 US qt | 4.05 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.4 l
6.76 US qt | 5.63 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1490 kg
3284.89 lbs.
Max. weight 1960 kg
4321.06 lbs.
Max load 470 kg
1036.17 lbs.
Trunk (boot) space – minimum 295 l
10.42 cu. ft.
Fuel tank capacity 50 l
13.21 US gal | 11 UK gal
Dimensions
Length 4405 mm
173.43 in.
Width 1795 mm
70.67 in.
Height 1565 mm
61.61 in.
Wheelbase 2640 mm
103.94 in.
Front track 1550 mm
61.02 in.
Rear (Back) track 1550 mm
61.02 in.
Ride height (ground clearance) 149 mm
5.87 in.
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 10 gears, automatic transmission Direct Shift CVT
Front suspension Independent type McPherson
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Disc
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/60 R17
Wheel rims size 17
