Specifications: Toyota Land Cruiser (J100) 4.2 TD (204 Hp) 1998, 1999, 2000, 2001, 2002

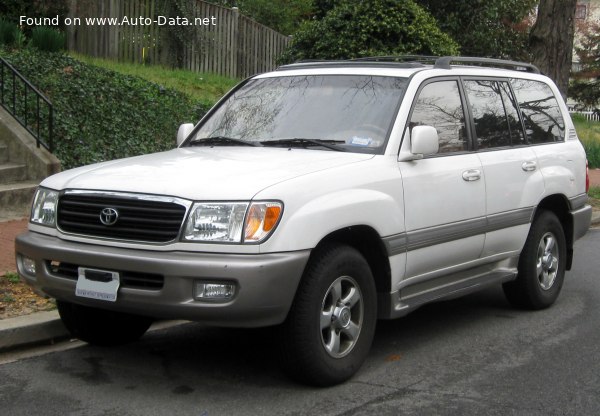

1998 Toyota Land Cruiser (J100) - Photo 1

Toyota Land Cruiser (J100) 4.2 TD (204 Hp) – Full specifications
General information
Brand Toyota
Model Land Cruiser
Generation Land Cruiser (J100)
Modification (Engine) 4.2 TD (204 Hp)
Start of production 1998 year
End of production 2002 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 8
Doors 5
Performance specs
Fuel consumption (economy) – urban 16.1 l/100 km
14.61 US mpg
17.55 UK mpg
6.21 km/l
Fuel consumption (economy) – combined 11.1 l/100 km
21.19 US mpg
25.45 UK mpg
9.01 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 13.6 sec
Acceleration 0 – 62 mph 13.6 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.9 sec
Maximum speed 170 km/h
105.63 mph
Weight-to-power ratio 12.2 kg/Hp, 81.8 Hp/tonne
Weight-to-torque ratio 5.8 kg/Nm, 172.3 Nm/tonne
Engine specs
Power 204 Hp @ 3400 rpm.
Power per litre 49 Hp/l
Torque 430 Nm @ 1400 rpm.
317.15 lb.-ft. @ 1400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1HD-FTE
Engine displacement 4164 cm3
254.1 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 94 mm
3.7 in.
Piston Stroke 100 mm
3.94 in.
Compression ratio 18.8:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain SOHC
Engine oil capacity 11.4 l
12.05 US qt | 10.03 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 13.7 l
14.48 US qt | 12.05 UK qt

Space, Volume and weights
Kerb Weight 2495 kg
5500.53 lbs.
Max. weight 3260 kg
7187.07 lbs.
Max load 765 kg
1686.54 lbs.
Trunk (boot) space – minimum 589 l
20.8 cu. ft.
Trunk (boot) space – maximum 2571 l
90.79 cu. ft.
Fuel tank capacity 96 l
25.36 US gal | 21.12 UK gal
Dimensions
Length 4890 mm
192.52 in.
Width 1940 mm
76.38 in.
Height 1860 mm
73.23 in.
Wheelbase 2850 mm
112.2 in.
Front track 1620 mm
63.78 in.
Rear (Back) track 1615 mm
63.58 in.
Minimum turning circle (turning diameter) 12.1 m
39.7 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Double wishbone, Trailing arm
Rear suspension Rigid axle suspension, Coil spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 275/65 R17
