Specifications: Toyota Land Cruiser (J105) 4.2 TD (204 Hp) 1998, 1999, 2000, 2001, 2002, 2003, 2004, 2005

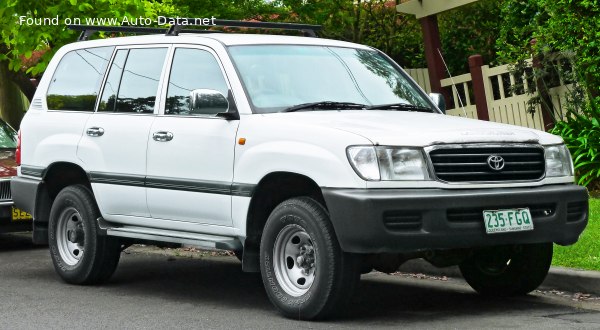

1998 Toyota Land Cruiser (J105) - Photo 1

Toyota Land Cruiser (J105) 4.2 TD (204 Hp) – Full specifications
General information
Brand Toyota
Model Land Cruiser
Generation Land Cruiser (J105)
Modification (Engine) 4.2 TD (204 Hp)
Start of production 1998 year
End of production 2005 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 8
Doors 5
Performance specs
Fuel Type Diesel
Emission standard Euro 3
Engine specs
Power 204 Hp @ 3400 rpm.
Power per litre 49 Hp/l
Torque 430 Nm @ 1400 rpm.
317.15 lb.-ft. @ 1400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1HD-FTE
Engine displacement 4164 cm3
254.1 cu. in.
Number of cylinders 6
Engine configuration Inline
Cylinder Bore 94 mm
3.7 in.
Piston Stroke 100 mm
3.94 in.
Compression ratio 18.8:1
Number of valves per cylinder 4
Fuel injection system Direct injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 11.4 l
12.05 US qt | 10.03 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 13.7 l
14.48 US qt | 12.05 UK qt

Space, Volume and weights
Fuel tank capacity 95 l
25.1 US gal | 20.9 UK gal
Dimensions
Length 4890 mm
192.52 in.
Width 1940 mm
76.38 in.
Height 1890 mm
74.41 in.
Wheelbase 2850 mm
112.2 in.
Front track 1620 mm
63.78 in.
Rear (Back) track 1615 mm
63.58 in.
Minimum turning circle (turning diameter) 11 m
36.09 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Dependent spring suspension with anti-roll bar
Rear suspension dependent spring suspension, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Cone worm with recirculation balls
