Specifications: Toyota Land Cruiser (J200, facelift 2013) 5.7 V8 (381 Hp) 4×4 ECT-i 2013, 2014, 2015

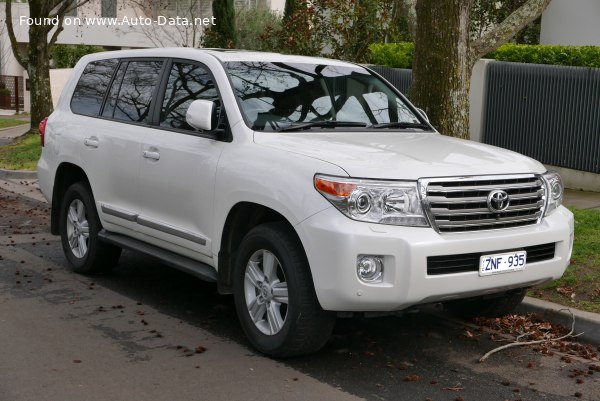

2013 Toyota Land Cruiser (J200, facelift 2013) - Photo 1

Toyota Land Cruiser (J200, facelift 2013) 5.7 V8 (381 Hp) 4×4 ECT-i – Full specifications
General information
Brand Toyota
Model Land Cruiser
Generation Land Cruiser (J200, facelift 2013)
Modification (Engine) 5.7 V8 (381 Hp) 4×4 ECT-i
Start of production 2013 year
End of production 2015 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 8
Doors 5
Performance specs
Fuel consumption (economy) – urban 18.1 l/100 km
13 US mpg
15.61 UK mpg
5.52 km/l
Fuel consumption (economy) – extra urban 13.1 l/100 km
17.96 US mpg
21.56 UK mpg
7.63 km/l
Fuel Type Petrol (Gasoline)
Emission standard ULEV-II
Weight-to-power ratio 6.9 kg/Hp, 145.7 Hp/tonne
Weight-to-torque ratio 4.8 kg/Nm, 208 Nm/tonne
Engine specs
Power 381 Hp @ 5600 rpm.
Power per litre 67.3 Hp/l
Torque 544 Nm @ 3600 rpm.
401.23 lb.-ft. @ 3600 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 3UR-FE
Engine displacement 5663 cm3
345.58 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 94 mm
3.7 in.
Piston Stroke 102 mm
4.02 in.
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVT-i
Engine oil capacity 7.5 l
7.93 US qt | 6.6 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 16.7 l
17.65 US qt | 14.69 UK qt

Space, Volume and weights
Kerb Weight 2615 kg
5765.09 lbs.
Max. weight 3300 kg
7275.25 lbs.
Max load 685 kg
1510.17 lbs.
Trunk (boot) space – minimum 456 l
16.1 cu. ft.
Trunk (boot) space – maximum 2313 l
81.68 cu. ft.
Fuel tank capacity 93 l
24.57 US gal | 20.46 UK gal
Permitted trailer load with brakes (12%) 3719 kg
8198.99 lbs.
Dimensions
Length 4950 mm
194.88 in.
Width 1971 mm
77.6 in.
Height 1880 mm
74.02 in.
Wheelbase 2850 mm
112.2 in.
Front track 1641 mm
64.61 in.
Rear (Back) track 1636 mm
64.41 in.
Ride height (ground clearance) 226 mm
8.9 in.
Minimum turning circle (turning diameter) 11.8 m
38.71 ft.
Approach angle 30°
Departure angle 20°
Ramp-over (brakeover) angle 21°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission ECT-i
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Rigid axle suspension, Transverse stabilizer, Coil spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 285/60 R18
Wheel rims size 8J x 18
