Specifications: Toyota Land Cruiser (J250) 2.4 i-FORCE MAX (326 Hp) Full Hybrid 4WD ECT-i 2024, 2025

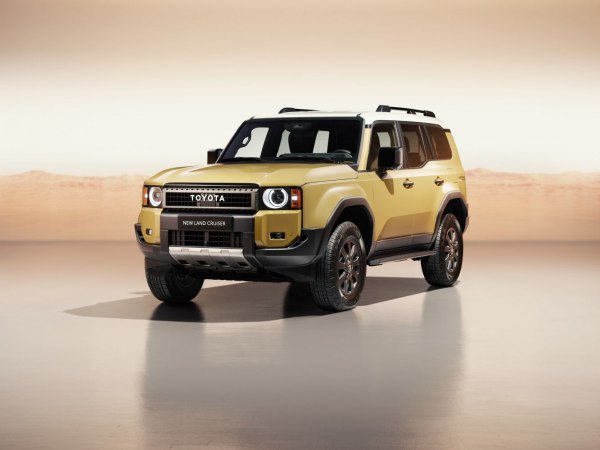

2024 Toyota Land Cruiser (J250) - Photo 1

Toyota Land Cruiser (J250) 2.4 i-FORCE MAX (326 Hp) Full Hybrid 4WD ECT-i – Full specifications
General information
Brand Toyota
Model Land Cruiser
Generation Land Cruiser (J250)
Modification (Engine) 2.4 i-FORCE MAX (326 Hp) Full Hybrid 4WD ECT-i
Start of production 2024 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (EPA) 10.7 l/100 km
21.98 US mpg
26.4 UK mpg
9.35 km/l
Fuel consumption (economy) – extra urban (EPA) 9.4 l/100 km
25.02 US mpg
30.05 UK mpg
10.64 km/l
Fuel consumption (economy) – combined (EPA) 10.2 l/100 km
23.06 US mpg
27.69 UK mpg
9.8 km/l
Fuel Type Petrol (Gasoline)
Emission standard BIN 125
Weight-to-power ratio 7 kg/Hp, 142.7 Hp/tonne
Weight-to-torque ratio 3.6 kg/Nm, 275.7 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 1.87 kWh
Battery voltage 288 V
Battery technology Nickel-metal hydride (NiMH)
Electric motor 1
Electric motor power 48 Hp
Electric motor location Integrated into the transmission
System power 326 Hp @ 6000 rpm.
System torque 630 Nm @ 1700 rpm.
464.66 lb.-ft. @ 1700 rpm.
Internal combustion engine specs
Engine layout Front, Longitudinal
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Turbocharger, Intercooler
Valvetrain DVVT, VVT-i
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 2285 kg
5037.56 lbs.
Max. weight 3100 kg
6834.33 lbs.
Max load 815 kg
1796.77 lbs.
Trunk (boot) space – minimum 1062 l
37.5 cu. ft.
Fuel tank capacity 68 l
17.96 US gal | 14.96 UK gal
Permitted trailer load with brakes (12%) 2722 kg
6000.98 lbs.
Dimensions
Length 4923 mm
193.82 in.
Width 1979 mm
77.91 in.
Width including mirrors 2139 mm
84.21 in.
Height 1933 mm
76.1 in.
Wheelbase 2850 mm
112.2 in.
Ride height (ground clearance) 203 mm
7.99 in.
Minimum turning circle (turning diameter) 12.2 m
40.03 ft.
Approach angle 31°
Departure angle 17°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission ECT-i
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Rigid axle suspension
Front brakes Ventilated discs, 431.8 mm
Rear brakes Ventilated discs, 431.8 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/70 R18; 265/70 R18; 265/60 R20
Wheel rims size 18; 20
