Specifications: Toyota Land Cruiser (J70, J73) 2.4 TD (LJ73) (90 Hp) 4WD 1990, 1991, 1992, 1993, 1994, 1995, 1996

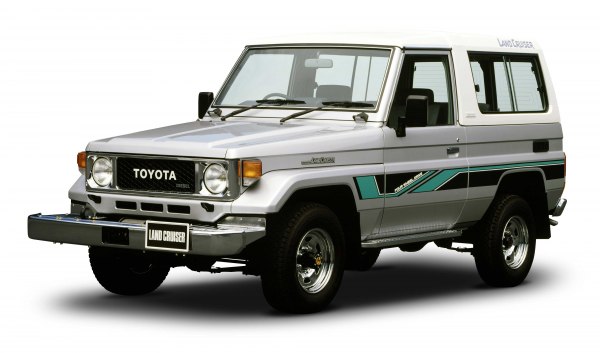

1984 Toyota Land Cruiser (J70, J73) - Photo 1

Toyota Land Cruiser (J70, J73) 2.4 TD (LJ73) (90 Hp) 4WD – Full specifications
General information
Brand Toyota
Model Land Cruiser
Generation Land Cruiser (J70, J73)
Modification (Engine) 2.4 TD (LJ73) (90 Hp) 4WD
Start of production 1990 year
End of production 1996 year
Powertrain Architecture Internal Combustion engine
Body type Off-road vehicle
Seats 8
Doors 3
Performance specs
Fuel Type Diesel
Engine specs
Power 90 Hp @ 4000 rpm.
Power per litre 36.8 Hp/l
Torque 188 Nm @ 2200 rpm.
138.66 lb.-ft. @ 2200 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 2L-T
Engine displacement 2446 cm3
149.26 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 92 mm
3.62 in.
Piston Stroke 92 mm
3.62 in.
Compression ratio 20:1
Number of valves per cylinder 2
Fuel injection system Precombustion chamber injection
Engine aspiration Turbocharger
Valvetrain SOHC
Engine oil capacity 5.1 l
5.39 US qt | 4.49 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Fuel tank capacity 90 l
23.78 US gal | 19.8 UK gal
Dimensions
Length 4405 mm
173.43 in.
Width 1790 mm
70.47 in.
Height 1950 mm
76.77 in.
Wheelbase 2600 mm
102.36 in.
Front track 1455 mm
57.28 in.
Rear (Back) track 1440 mm
56.69 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Leaf spring
Rear suspension Leaf spring
Front brakes Disc
Rear brakes Drum
Steering type Cone worm with recirculation balls
Tires size 265/75 R15
