Specifications: Toyota Land Cruiser (J79) 4.0 i V6 (231 Hp) 4WD 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022

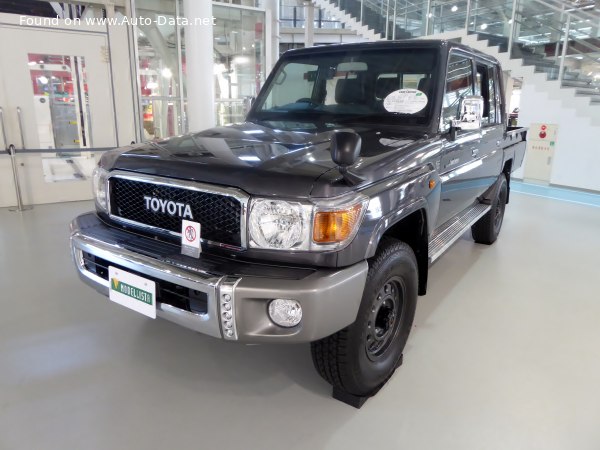

2004 Toyota Land Cruiser (J79) - Photo 1

Toyota Land Cruiser (J79) 4.0 i V6 (231 Hp) 4WD – Full specifications
General information
Brand Toyota
Model Land Cruiser
Generation Land Cruiser (J79)
Modification (Engine) 4.0 i V6 (231 Hp) 4WD
Start of production 2012 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – combined 14.4 l/100 km
16.33 US mpg
19.62 UK mpg
6.94 km/l
CO2 emissions 343 g/km
Fuel Type Petrol (Gasoline)
Maximum speed 165 km/h
102.53 mph
Weight-to-power ratio 10.2 kg/Hp, 97.9 Hp/tonne
Weight-to-torque ratio 6.6 kg/Nm, 152.5 Nm/tonne
Engine specs
Power 231 Hp @ 5200 rpm.
Power per litre 58.4 Hp/l
Torque 360 Nm @ 3800 rpm.
265.52 lb.-ft. @ 3800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1GR-FE
Engine displacement 3956 cm3
241.41 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 94 mm
3.7 in.
Piston Stroke 95 mm
3.74 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVT-i
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.

Space, Volume and weights
Kerb Weight 2360 kg
5202.91 lbs.
Max. weight 3200 kg
7054.79 lbs.
Max load 840 kg
1851.88 lbs.
Fuel tank capacity 130 l
34.34 US gal | 28.6 UK gal
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 5095 mm
200.59 in.
Width 1870 mm
73.62 in.
Height 1955 mm
76.97 in.
Wheelbase 3180 mm
125.2 in.
Front track 1555 mm
61.22 in.
Rear (Back) track 1460 mm
57.48 in.
Front overhang 710 mm
27.95 in.
Rear overhang 1205 mm
47.44 in.
Ride height (ground clearance) 235 mm
9.25 in.
Minimum turning circle (turning diameter) 14.4 m
47.24 ft.
Approach angle 36°
Departure angle 27°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Dependent spring suspension with anti-roll bar
Rear suspension Rigid axle suspension, Leaf spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Power steering Hydraulic Steering
Tires size 265/70 R16
