Specifications: Toyota Land Cruiser Prado (J120) 3.0 D-4D (173 Hp) 4WD 2007, 2008, 2009

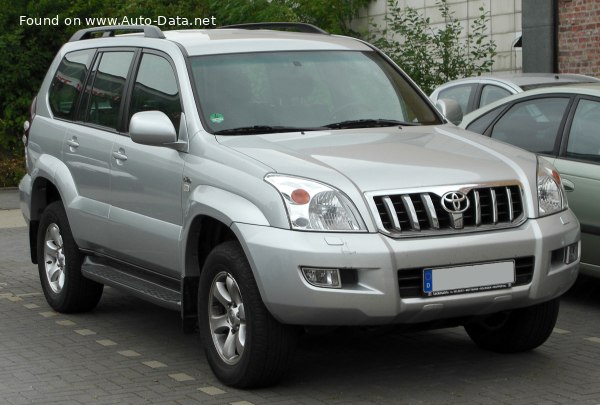

2002 Toyota Land Cruiser Prado (J120) - Photo 1

Toyota Land Cruiser Prado (J120) 3.0 D-4D (173 Hp) 4WD – Full specifications
General information
Brand Toyota
Model Land Cruiser Prado
Generation Land Cruiser Prado (J120)
Modification (Engine) 3.0 D-4D (173 Hp) 4WD
Start of production 2007 year
End of production 2009 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 8
Doors 5
Performance specs
Fuel consumption (economy) – urban 11.2 l/100 km
21 US mpg
25.22 UK mpg
8.93 km/l
Fuel consumption (economy) – extra urban 8 l/100 km
29.4 US mpg
35.31 UK mpg
12.5 km/l
Fuel consumption (economy) – combined 9.2 l/100 km
25.57 US mpg
30.7 UK mpg
10.87 km/l
CO2 emissions 243 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 11.5 sec
Acceleration 0 – 62 mph 11.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 10.9 sec
Maximum speed 175 km/h
108.74 mph
Emission standard Euro 4
Weight-to-power ratio 11.3 kg/Hp, 88.7 Hp/tonne
Weight-to-torque ratio 4.8 kg/Nm, 210.3 Nm/tonne
Engine specs
Power 173 Hp @ 3400 rpm.
Power per litre 58 Hp/l
Torque 410 Nm @ 1600-2800 rpm.
302.4 lb.-ft. @ 1600-2800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1KD-FTV
Engine displacement 2982 cm3
181.97 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 96 mm
3.78 in.
Piston Stroke 103 mm
4.06 in.
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7.4 l
7.82 US qt | 6.51 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10.8 l
11.41 US qt | 9.5 UK qt

Space, Volume and weights
Kerb Weight 1950-2130 kg
4299.01 – 4695.85 lbs.
Max. weight 2850 kg
6283.17 lbs.
Max load 720-900 kg
1587.33 – 1984.16 lbs.
Trunk (boot) space – minimum 620 l
21.9 cu. ft.
Trunk (boot) space – maximum 1850 l
65.33 cu. ft.
Fuel tank capacity 87 l
22.98 US gal | 19.14 UK gal
Max. roof load 80 kg
176.37 lbs.
Permitted trailer load with brakes (12%) 2800 kg
6172.94 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 130 kg
286.6 lbs.
Dimensions
Length 4715 mm
185.63 in.
Width 1875 mm
73.82 in.
Height 1865 mm
73.43 in.
Wheelbase 2790 mm
109.84 in.
Front track 1575 mm
62.01 in.
Rear (Back) track 1575 mm
62.01 in.
Ride height (ground clearance) 220 mm
8.66 in.
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Approach angle 31°
Departure angle 26°
Ramp-over (brakeover) angle 20°
Climb angle 42°
Wading depth 700 mm
27.56 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Double wishbone
Rear suspension Rigid axle suspension, Coil spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 225/70 R17
Wheel rims size 6J x 17
