Specifications: Toyota Land Cruiser Prado (J125) 3.0 D-4D (170 Hp) 4WD ECT-E 2004, 2005, 2006, 2007

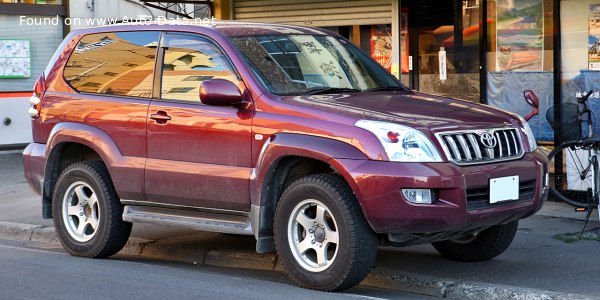

2002 Toyota Land Cruiser Prado (J125) - Photo 1

Toyota Land Cruiser Prado (J125) 3.0 D-4D (170 Hp) 4WD ECT-E – Full specifications
General information
Brand Toyota
Model Land Cruiser Prado
Generation Land Cruiser Prado (J125)
Modification (Engine) 3.0 D-4D (170 Hp) 4WD ECT-E
Start of production 2004 year
End of production 2007 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban 11.5 l/100 km
20.45 US mpg
24.56 UK mpg
8.7 km/l
Fuel consumption (economy) – extra urban 8.1 l/100 km
29.04 US mpg
34.87 UK mpg
12.35 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 12.7 sec
Acceleration 0 – 62 mph 12.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 12.1 sec
Maximum speed 165 km/h
102.53 mph
Weight-to-power ratio 11.2 kg/Hp, 89.5 Hp/tonne
Weight-to-torque ratio 5.4 kg/Nm, 185.3 Nm/tonne
Engine specs
Power 170 Hp @ 3400 rpm.
Power per litre 57 Hp/l
Torque 352 Nm @ 1400-3400 rpm.
259.62 lb.-ft. @ 1400-3400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1KD-FTV
Engine displacement 2982 cm3
181.97 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 96 mm
3.78 in.
Piston Stroke 103 mm
4.06 in.
Compression ratio 17.9:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7.4 l
7.82 US qt | 6.51 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10.8 l
11.41 US qt | 9.5 UK qt

Space, Volume and weights
Kerb Weight 1900-1910 kg
4188.78 – 4210.83 lbs.
Max. weight 2175 kg
4795.05 lbs.
Max load 265-275 kg
584.22 – 606.27 lbs.
Trunk (boot) space – minimum 403 l
14.23 cu. ft.
Trunk (boot) space – maximum 1150 l
40.61 cu. ft.
Fuel tank capacity 87 l
22.98 US gal | 19.14 UK gal
Dimensions
Length 4365 mm
171.85 in.
Width 1875 mm
73.82 in.
Height 1870 mm
73.62 in.
Wheelbase 2455 mm
96.65 in.
Front track 1575 mm
62.01 in.
Rear (Back) track 1575 mm
62.01 in.
Ride height (ground clearance) 215 mm
8.46 in.
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Approach angle 33°
Departure angle 31°
Ramp-over (brakeover) angle 26°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 4 gears, automatic transmission ECT-E
Front suspension Double wishbone
Rear suspension Rigid axle suspension, Coil spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 265/65 R17
Wheel rims size 7.5J x 17
