Specifications: Toyota Land Cruiser Prado (J150) 3-door 3.0 D-4D (173 Hp) 4WD Automatic 2009, 2010

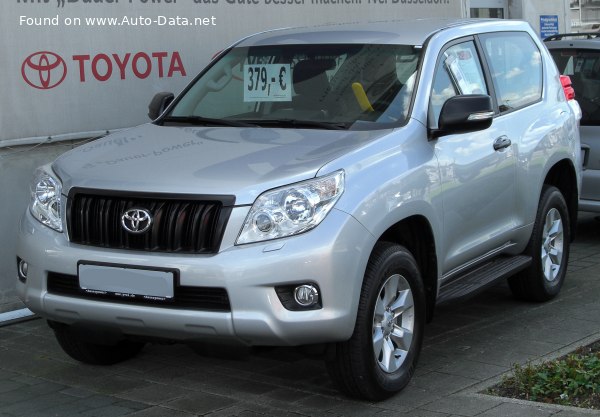

2010 Toyota Land Cruiser Prado (J150) 3-door - Photo 1

Toyota Land Cruiser Prado (J150) 3-door 3.0 D-4D (173 Hp) 4WD Automatic – Full specifications
General information
Brand Toyota
Model Land Cruiser Prado
Generation Land Cruiser Prado (J150) 3-door
Modification (Engine) 3.0 D-4D (173 Hp) 4WD Automatic
Start of production 2009 year
End of production 2010 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban (NEDC) 10.2-10.4 l/100 km
23.06 – 22.62 US mpg
27.69 – 27.16 UK mpg
9.8 – 9.62 km/l
Fuel consumption (economy) – extra urban (NEDC) 6.6-6.7 l/100 km
35.64 – 35.11 US mpg
42.8 – 42.16 UK mpg
15.15 – 14.93 km/l
Fuel consumption (economy) – combined (NEDC) 8-8.1 l/100 km
29.4 – 29.04 US mpg
35.31 – 34.87 UK mpg
12.5 – 12.35 km/l
CO2 emissions (NEDC) 210-214 g/km
Fuel Type Diesel
Maximum speed 175 km/h
108.74 mph
Emission standard Euro 4
Weight-to-power ratio 11.4 kg/Hp, 87.8 Hp/tonne
Weight-to-torque ratio 4.8 kg/Nm, 208.1 Nm/tonne
Engine specs
Power 173 Hp @ 3400 rpm.
Power per litre 58 Hp/l
Torque 410 Nm @ 1600-2800 rpm.
302.4 lb.-ft. @ 1600-2800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1KD-FTV
Engine displacement 2982 cm3
181.97 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 96 mm
3.78 in.
Piston Stroke 103 mm
4.06 in.
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7 l
7.4 US qt | 6.16 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 13.1 l
13.84 US qt | 11.53 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1970 kg
4343.11 lbs.
Max. weight 2600 kg
5732.02 lbs.
Max load 630 kg
1388.91 lbs.
Trunk (boot) space – minimum 381 l
13.45 cu. ft.
Trunk (boot) space – maximum 1434 l
50.64 cu. ft.
Fuel tank capacity 87 l
22.98 US gal | 19.14 UK gal
Max. roof load 80 kg
176.37 lbs.
Permitted trailer load with brakes (12%) 3000 kg
6613.87 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 120 kg
264.55 lbs.
Dimensions
Length 4485 mm
176.57 in.
Width 1885 mm
74.21 in.
Width including mirrors 2185 mm
86.02 in.
Height 1875 mm
73.82 in.
Wheelbase 2450 mm
96.46 in.
Front track 1605 mm
63.19 in.
Rear (Back) track 1605 mm
63.19 in.
Front overhang 895 mm
35.24 in.
Rear overhang 970 mm
38.19 in.
Ride height (ground clearance) 205 mm
8.07 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Approach angle 32°
Departure angle 26°
Ramp-over (brakeover) angle 25°
Climb angle 42°
Wading depth 700 mm
27.56 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, automatic transmission
Front suspension Double wishbone
Rear suspension Rigid axle suspension, Coil spring
Front brakes Ventilated discs, 388 mm
Rear brakes Ventilated discs, 312 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 245/70 R17
Wheel rims size 6.5J x 17
