Specifications: Toyota Land Cruiser Prado (J150) 5-door 3.0 D-4D (173 Hp) 4WD 2009, 2010, 2011

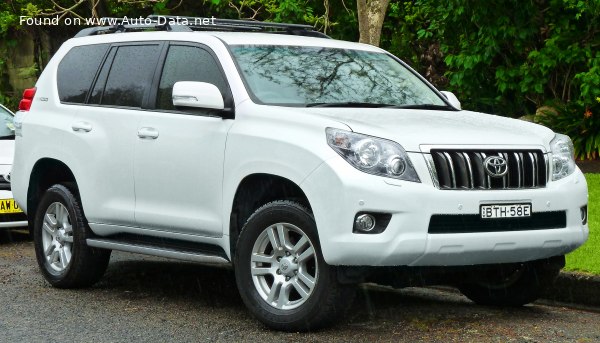

2010 Toyota Land Cruiser Prado (J150) 5-door - Photo 1

Toyota Land Cruiser Prado (J150) 5-door 3.0 D-4D (173 Hp) 4WD – Full specifications
General information
Brand Toyota
Model Land Cruiser Prado
Generation Land Cruiser Prado (J150) 5-door
Modification (Engine) 3.0 D-4D (173 Hp) 4WD
Start of production 2009 year
End of production 2011 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 7
Doors 5
Performance specs
Fuel consumption (economy) – urban 10.5-10.6 l/100 km
22.4 – 22.19 US mpg
26.9 – 26.65 UK mpg
9.52 – 9.43 km/l
Fuel consumption (economy) – extra urban 7.1-7.3 l/100 km
33.13 – 32.22 US mpg
39.79 – 38.7 UK mpg
14.08 – 13.7 km/l
Fuel consumption (economy) – combined 8.4-8.5 l/100 km
28 – 27.67 US mpg
33.63 – 33.23 UK mpg
11.9 – 11.76 km/l
CO2 emissions 220-224 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 11.7 sec
Acceleration 0 – 62 mph 11.7 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.1 sec
Maximum speed 175 km/h
108.74 mph
Emission standard Euro 4
Weight-to-power ratio 11.3 kg/Hp, 88.3 Hp/tonne
Weight-to-torque ratio 4.8 kg/Nm, 209.2 Nm/tonne
Engine specs
Power 173 Hp @ 3400 rpm.
Power per litre 58 Hp/l
Torque 410 Nm @ 1600-2800 rpm.
302.4 lb.-ft. @ 1600-2800 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 5L-E
Engine displacement 2982 cm3
181.97 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 96 mm
3.78 in.
Piston Stroke 103 mm
4.06 in.
Compression ratio 17.9:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 6.9 l
7.29 US qt | 6.07 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.6 l
9.09 US qt | 7.57 UK qt

Space, Volume and weights
Kerb Weight 1960-2325 kg
4321.06 – 5125.75 lbs.
Max. weight 2990 kg
6591.82 lbs.
Max load 665-1030 kg
1466.07 – 2270.76 lbs.
Trunk (boot) space – minimum 104 l
3.67 cu. ft.
Trunk (boot) space – maximum 1934 l
68.3 cu. ft.
Fuel tank capacity 87 l
22.98 US gal | 19.14 UK gal
Max. roof load 80 kg
176.37 lbs.
Permitted trailer load with brakes (12%) 3000 kg
6613.87 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 120 kg
264.55 lbs.
Dimensions
Length 4760 mm
187.4 in.
Width 1885 mm
74.21 in.
Width including mirrors 2185 mm
86.02 in.
Height 1890 mm
74.41 in.
Wheelbase 2790 mm
109.84 in.
Front track 1605 mm
63.19 in.
Rear (Back) track 1605 mm
63.19 in.
Ride height (ground clearance) 215 mm
8.46 in.
Minimum turning circle (turning diameter) 11.8 m
38.71 ft.
Approach angle 32°
Departure angle 25°
Ramp-over (brakeover) angle 22°
Climb angle 42°
Wading depth 700 mm
27.56 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Rigid axle suspension, Coil spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Tires size 245/70 R17; 265/60 R18
Wheel rims size 6.5J x 17; 7.5J x 18
