Specifications: Toyota Land Cruiser Prado (J150, facelift 2017) 5-door 2.7 (163 Hp) 4WD 2017, 2018, 2019, 2020, 2021, 2022, 2023

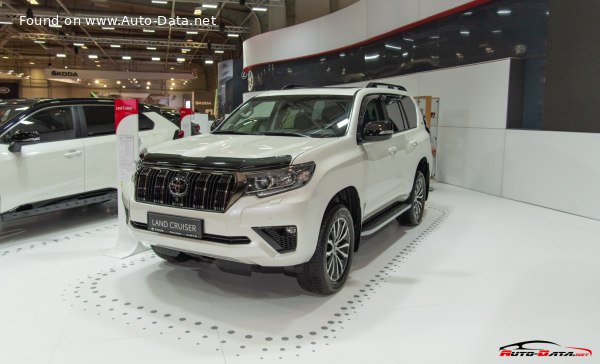

2017 Toyota Land Cruiser Prado (J150, facelift 2017) 5-door - Photo 1

Toyota Land Cruiser Prado (J150, facelift 2017) 5-door 2.7 (163 Hp) 4WD – Full specifications
General information
Brand Toyota
Model Land Cruiser Prado
Generation Land Cruiser Prado (J150, facelift 2017) 5-door
Modification (Engine) 2.7 (163 Hp) 4WD
Start of production 2017 year
End of production October, 2023 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5-7
Doors 5
Performance specs
Fuel consumption (economy) – combined 12.3 l/100 km
19.12 US mpg
22.97 UK mpg
8.13 km/l
CO2 emissions 288 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 13.8 sec
Acceleration 0 – 62 mph 13.8 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13.1 sec
Maximum speed 165 km/h
102.53 mph
Emission standard Euro 6
Weight-to-power ratio 12.9 kg/Hp, 77.8 Hp/tonne
Weight-to-torque ratio 8.5 kg/Nm, 117.4 Nm/tonne
Engine specs
Power 163 Hp @ 5200 rpm.
Power per litre 60.5 Hp/l
Torque 246 Nm @ 3900 rpm.
181.44 lb.-ft. @ 3900 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 2TR-FE
Engine displacement 2694 cm3
164.4 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 95 mm
3.74 in.
Piston Stroke 95 mm
3.74 in.
Compression ratio 10.2:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain VVT-i
Engine oil capacity 5.6 l
5.92 US qt | 4.93 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8.3 l
8.77 US qt | 7.3 UK qt

Space, Volume and weights
Kerb Weight 2095 kg
4618.68 lbs.
Max. weight 2850 kg
6283.17 lbs.
Max load 755 kg
1664.49 lbs.
Trunk (boot) space – minimum 621 l
21.93 cu. ft.
Trunk (boot) space – maximum 1934 l
68.3 cu. ft.
Fuel tank capacity 87 l
22.98 US gal | 19.14 UK gal
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 4840 mm
190.55 in.
Width 1855 mm
73.03 in.
Height 1845 mm
72.64 in.
Wheelbase 2790 mm
109.84 in.
Front track 1585 mm
62.4 in.
Rear (Back) track 1585 mm
62.4 in.
Front overhang 975 mm
38.39 in.
Rear overhang 1075 mm
42.32 in.
Ride height (ground clearance) 215 mm
8.46 in.
Approach angle 31°
Departure angle 25°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Double wishbone
Rear suspension Dependent, multi-link spring with telescopic shock absorbers
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 265/65 R17; 245/70 R17; 265/60 R18
Wheel rims size 7.5J x 17; 6.5J x 17; 7.5J x 18
