Specifications: Toyota Land Cruiser Prado (J90) 3-door 3.0 TD (125 Hp) 4WD ECT 1996, 1997, 1998, 1999

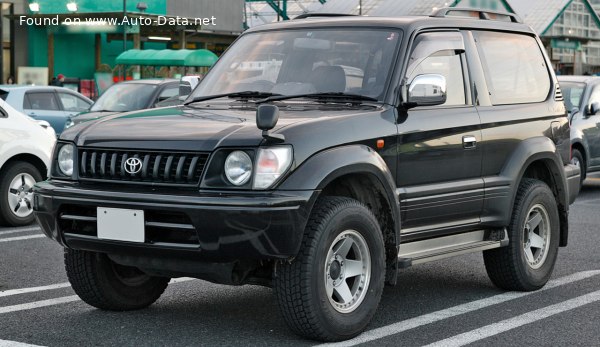

1996 Toyota Land Cruiser Prado (J90) 3-door - Photo 1

Toyota Land Cruiser Prado (J90) 3-door 3.0 TD (125 Hp) 4WD ECT – Full specifications
General information
Brand Toyota
Model Land Cruiser Prado
Generation Land Cruiser Prado (J90) 3-door
Modification (Engine) 3.0 TD (125 Hp) 4WD ECT
Start of production 1996 year
End of production 1999 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 3
Performance specs
Fuel consumption (economy) – urban 13.2 l/100 km
17.82 US mpg
21.4 UK mpg
7.58 km/l
Fuel consumption (economy) – extra urban 9.6 l/100 km
24.5 US mpg
29.43 UK mpg
10.42 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 14 sec
Acceleration 0 – 62 mph 14 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 13.3 sec
Maximum speed 160 km/h
99.42 mph
Weight-to-power ratio 14.2 kg/Hp, 70.4 Hp/tonne
Weight-to-torque ratio 6 kg/Nm, 166.2 Nm/tonne
Engine specs
Power 125 Hp @ 3600 rpm.
Power per litre 41.9 Hp/l
Torque 295 Nm @ 2000 rpm.
217.58 lb.-ft. @ 2000 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1KZ-TE
Engine displacement 2982 cm3
181.97 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 96 mm
3.78 in.
Piston Stroke 103 mm
4.06 in.
Compression ratio 21.2:1
Number of valves per cylinder 2
Fuel injection system Precombustion chamber injection
Engine aspiration Turbocharger, Intercooler
Valvetrain OHC
Engine oil capacity 7 l
7.4 US qt | 6.16 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10 l
10.57 US qt | 8.8 UK qt

Space, Volume and weights
Kerb Weight 1775 kg
3913.21 lbs.
Max. weight 2510 kg
5533.6 lbs.
Max load 735 kg
1620.4 lbs.
Trunk (boot) space – minimum 450 l
15.89 cu. ft.
Trunk (boot) space – maximum 836 l
29.52 cu. ft.
Fuel tank capacity 90 l
23.78 US gal | 19.8 UK gal
Dimensions
Length 4240 mm
166.93 in.
Width 1820 mm
71.65 in.
Height 1880 mm
74.02 in.
Wheelbase 2370 mm
93.31 in.
Front track 1505 mm
59.25 in.
Rear (Back) track 1510 mm
59.45 in.
Ride height (ground clearance) 230 mm
9.06 in.
Minimum turning circle (turning diameter) 10.2 m
33.46 ft.
Approach angle 37°
Departure angle 28°
Ramp-over (brakeover) angle 32°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 4 gears, automatic transmission ECT
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Rigid axle suspension, Coil spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/80 R16
Wheel rims size 16
