Specifications: Toyota Land Cruiser Prado (J90) 5-door 3.4 V6 24V (178 Hp) 4WD ECT 1996, 1997, 1998, 1999

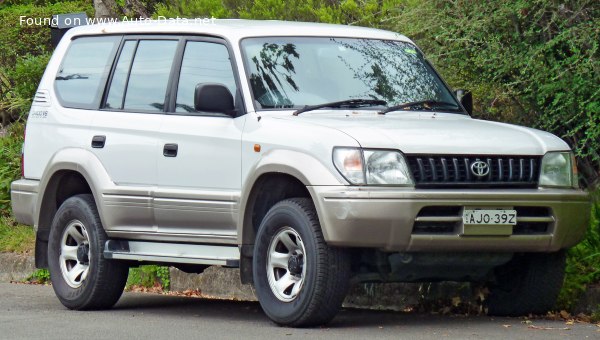

1996 Toyota Land Cruiser Prado (J90) 5-door - Photo 1

Toyota Land Cruiser Prado (J90) 5-door 3.4 V6 24V (178 Hp) 4WD ECT – Full specifications
General information
Brand Toyota
Model Land Cruiser Prado
Generation Land Cruiser Prado (J90) 5-door
Modification (Engine) 3.4 V6 24V (178 Hp) 4WD ECT
Start of production 1996 year
End of production 1999 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 8
Doors 5
Performance specs
Fuel consumption (economy) – urban 18.6 l/100 km
12.65 US mpg
15.19 UK mpg
5.38 km/l
Fuel consumption (economy) – extra urban 11.4 l/100 km
20.63 US mpg
24.78 UK mpg
8.77 km/l
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.4 sec
Acceleration 0 – 62 mph 10.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.9 sec
Maximum speed 180 km/h
111.85 mph
Weight-to-power ratio 10.3 kg/Hp, 97 Hp/tonne
Weight-to-torque ratio 6.1 kg/Nm, 165.1 Nm/tonne
Engine specs
Power 178 Hp @ 4600 rpm.
Power per litre 52.7 Hp/l
Torque 303 Nm @ 3600 rpm.
223.48 lb.-ft. @ 3600 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 5VZ-FE
Engine displacement 3378 cm3
206.14 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 93.5 mm
3.68 in.
Piston Stroke 82 mm
3.23 in.
Compression ratio 9.6:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 5.2 l
5.49 US qt | 4.58 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 8 l
8.45 US qt | 7.04 UK qt

Space, Volume and weights
Kerb Weight 1835 kg
4045.48 lbs.
Max. weight 2710 kg
5974.53 lbs.
Max load 875 kg
1929.04 lbs.
Trunk (boot) space – minimum 742 l
26.2 cu. ft.
Trunk (boot) space – maximum 1150 l
40.61 cu. ft.
Fuel tank capacity 90 l
23.78 US gal | 19.8 UK gal
Dimensions
Length 4675 mm
184.06 in.
Width 1820 mm
71.65 in.
Height 1880 mm
74.02 in.
Wheelbase 2675 mm
105.31 in.
Front track 1505 mm
59.25 in.
Rear (Back) track 1510 mm
59.45 in.
Ride height (ground clearance) 230 mm
9.06 in.
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Approach angle 37°
Departure angle 25°
Ramp-over (brakeover) angle 29°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 4 gears, automatic transmission ECT
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Rigid axle suspension, Coil spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/80 R16
Wheel rims size 16
