Specifications: Toyota Land Cruiser Prado (J90, facelift 2000) 5-door 3.0 D-4D (163 Hp) 4WD 2000, 2001, 2002

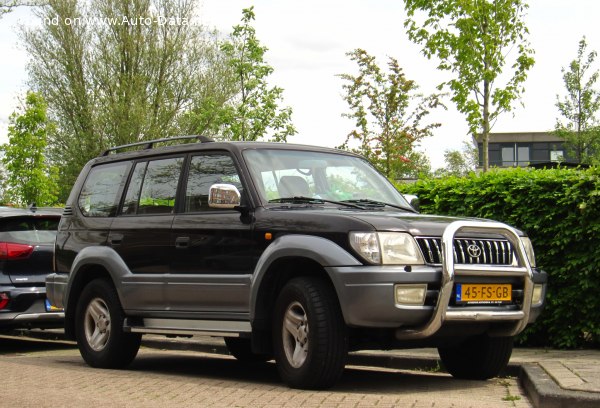

2000 Toyota Land Cruiser Prado (J90, facelift 2000) 5-door - Photo 1

Toyota Land Cruiser Prado (J90, facelift 2000) 5-door 3.0 D-4D (163 Hp) 4WD – Full specifications
General information
Brand Toyota
Model Land Cruiser Prado
Generation Land Cruiser Prado (J90, facelift 2000) 5-door
Modification (Engine) 3.0 D-4D (163 Hp) 4WD
Start of production 2000 year
End of production 2002 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 8
Doors 5
Performance specs
Fuel consumption (economy) – urban 11.7 l/100 km
20.1 US mpg
24.14 UK mpg
8.55 km/l
Fuel consumption (economy) – extra urban 8.2 l/100 km
28.68 US mpg
34.45 UK mpg
12.2 km/l
Fuel Type Diesel
Acceleration 0 – 100 km/h 12.5 sec
Acceleration 0 – 62 mph 12.5 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 11.9 sec
Maximum speed 165 km/h
102.53 mph
Weight-to-power ratio 11.9 kg/Hp, 84.2 Hp/tonne
Weight-to-torque ratio 5.6 kg/Nm, 177.3 Nm/tonne
Engine specs
Power 163 Hp @ 3400 rpm.
Power per litre 54.7 Hp/l
Torque 343 Nm @ 1600 rpm.
252.98 lb.-ft. @ 1600 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1KD-FTV
Engine displacement 2982 cm3
181.97 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 96 mm
3.78 in.
Piston Stroke 103 mm
4.06 in.
Compression ratio 18.4:1
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine oil capacity 7.5 l
7.93 US qt | 6.6 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 10 l
10.57 US qt | 8.8 UK qt

Space, Volume and weights
Kerb Weight 1935 kg
4265.94 lbs.
Max. weight 2810 kg
6194.99 lbs.
Max load 875 kg
1929.04 lbs.
Trunk (boot) space – minimum 742 l
26.2 cu. ft.
Trunk (boot) space – maximum 1150 l
40.61 cu. ft.
Fuel tank capacity 90 l
23.78 US gal | 19.8 UK gal
Dimensions
Length 4690 mm
184.65 in.
Width 1820 mm
71.65 in.
Height 1880 mm
74.02 in.
Wheelbase 2675 mm
105.31 in.
Front track 1505 mm
59.25 in.
Rear (Back) track 1510 mm
59.45 in.
Ride height (ground clearance) 230 mm
9.06 in.
Minimum turning circle (turning diameter) 11.4 m
37.4 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives permanently the four wheels of the vehicle.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Rigid axle suspension, Coil spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/80 R16 S
