Specifications: Toyota Prius III (ZVW30) 1.8 VVT-i (136 Hp) Hybrid e-CVT 2009, 2010, 2011, 2012

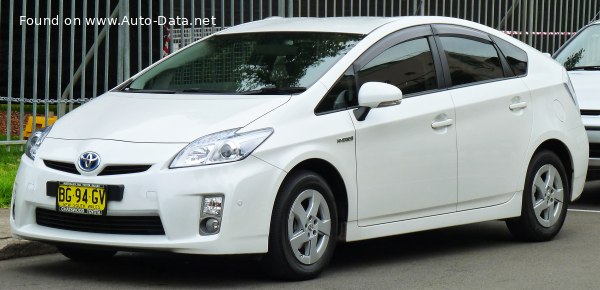

2010 Toyota Prius III (ZVW30) - Photo 1

Toyota Prius III (ZVW30) 1.8 VVT-i (136 Hp) Hybrid e-CVT – Full specifications
General information
Brand Toyota
Model Prius
Generation Prius III (ZVW30)
Modification (Engine) 1.8 VVT-i (136 Hp) Hybrid e-CVT
Start of production 2009 year
End of production 2012 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type Liftback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 3.7-3.8 l/100 km
63.57 – 61.9 US mpg
76.35 – 74.34 UK mpg
27.03 – 26.32 km/l
Fuel consumption (economy) – extra urban 3.9-4 l/100 km
60.31 – 58.8 US mpg
72.43 – 70.62 UK mpg
25.64 – 25 km/l
Fuel consumption (economy) – combined 3.9-4 l/100 km
60.31 – 58.8 US mpg
72.43 – 70.62 UK mpg
25.64 – 25 km/l
CO2 emissions 89-92 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 10.4 sec
Acceleration 0 – 62 mph 10.4 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 9.9 sec
Maximum speed 180 km/h
111.85 mph
Emission standard Euro 5
Weight-to-power ratio 10.1 kg/Hp, 99.3 Hp/tonne
Weight-to-torque ratio 9.6 kg/Nm, 103.6 Nm/tonne
Electric cars and hybrids specs
Battery voltage 201.6 V
Battery technology Nickel-metal hydride (NiMH)
Battery location Behind the back wall of the passenger cabin
Electric motor 1
Electric motor power 82 Hp
Electric motor Torque 207 Nm

152.68 lb.-ft.
Electric motor location Integrated into the transmission
System power 136 Hp
Internal combustion engine specs
Power 99 Hp @ 5200 rpm.
Power per litre 55.1 Hp/l
Torque 142 Nm @ 4000 rpm.
104.73 lb.-ft. @ 4000 rpm.
Engine layout Front, Transverse
Engine Model/Code 2ZR-FXE
Engine displacement 1798 cm3
109.72 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 80.5 mm
3.17 in.
Piston Stroke 88.3 mm
3.48 in.
Compression ratio 13:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.2 l
4.44 US qt | 3.7 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.5 l
6.87 US qt | 5.72 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1370-1420 kg
3020.33 – 3130.56 lbs.
Max. weight 1805 kg
3979.34 lbs.
Max load 385-435 kg
848.78 – 959.01 lbs.
Trunk (boot) space – minimum 445 l
15.72 cu. ft.
Trunk (boot) space – maximum 1545 l
54.56 cu. ft.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Max. roof load 75 kg
165.35 lbs.
Dimensions
Length 4460 mm
175.59 in.
Width 1745 mm
68.7 in.
Width including mirrors 2030 mm
79.92 in.
Height 1490 mm
58.66 in.
Wheelbase 2700 mm
106.3 in.
Front track 1515-1525 mm
59.65 – 60.04 in.
Rear (Back) track 1510-1520 mm
59.45 – 59.84 in.
Minimum turning circle (turning diameter) 11.2-11.8 m
36.75 – 38.71 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission e-CVT
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65 R15; 215/45 R17
Wheel rims size 6J x 15; 7J x 17
