Specifications: Toyota Prius V (XW60) 2.0 (199 Hp) Hybrid E-Four e-CVT 2023, 2024, 2025

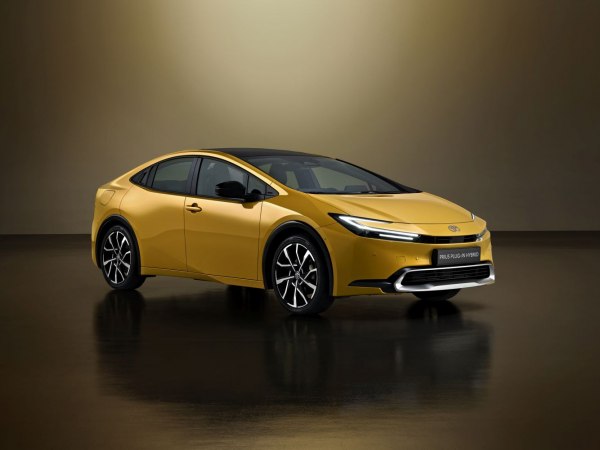

2023 Toyota Prius V (XW60) - Photo 1

Toyota Prius V (XW60) 2.0 (199 Hp) Hybrid E-Four e-CVT – Full specifications
General information
Brand Toyota
Model Prius
Generation Prius V (XW60)
Modification (Engine) 2.0 (199 Hp) Hybrid E-Four e-CVT
Start of production January, 2023 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type Liftback
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban (WLTC) 4.3 l/100 km
54.7 US mpg
65.69 UK mpg
23.26 km/l
Fuel consumption (economy) – extra urban (WLTC) 3.4 l/100 km
69.18 US mpg
83.08 UK mpg
29.41 km/l
Fuel consumption (economy) – combined (WLTC) 3.7 l/100 km
63.57 US mpg
76.35 UK mpg
27.03 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7.3 kg/Hp, 136.3 Hp/tonne
Weight-to-torque ratio 7.8 kg/Nm, 128.8 Nm/tonne
Electric cars and hybrids specs
Battery technology Lithium-ion (Li-Ion)
Electric motor 1
Electric motor power 113 Hp
Electric motor Torque 206 Nm

151.94 lb.-ft.
Electric motor model/code 1VM
Electric motor location Integrated into the transmission
Electric motor type Synchronous
Electric motor 2
Electric motor power 41 Hp
Electric motor Torque 84 Nm

61.96 lb.-ft.
Electric motor model/code 1WM
Electric motor location Rear axle, Transverse
Electric motor type Synchronous
System power 199 Hp
Internal combustion engine specs
Power 152 Hp @ 6000 rpm.
Power per litre 76.5 Hp/l
Torque 188 Nm @ 4400-5200 rpm.
138.66 lb.-ft. @ 4400-5200 rpm.
Engine layout Front, Transverse
Engine Model/Code M20A-FXS
Engine displacement 1986 cm3
121.19 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 80.5 mm
3.17 in.
Piston Stroke 97.6 mm
3.84 in.
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain VVT
Engine oil capacity 4.2 l
4.44 US qt | 3.7 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.1 l
6.45 US qt | 5.37 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 1460-1480 kg
3218.75 – 3262.84 lbs.
Max. weight 1755 kg
3869.11 lbs.
Max load 275-295 kg
606.27 – 650.36 lbs.
Fuel tank capacity 43 l
11.36 US gal | 9.46 UK gal
Dimensions
Length 4600 mm
181.1 in.
Width 1780 mm
70.08 in.
Height 1430 mm
56.3 in.
Wheelbase 2750 mm
108.27 in.
Front track 1560 mm
61.42 in.
Rear (Back) track 1570 mm
61.81 in.
Ride height (ground clearance) 150 mm
5.91 in.
Minimum turning circle (turning diameter) 10.8 m
35.43 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture An Internal combustion engine (ICE) drives the front wheels, one electric motor drives the front wheels, one electric motor drives the rear wheels. There is an ability for running in full electric or mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox automatic transmission eCVT
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Double wishbone, Transverse stabilizer
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/60 R17; 195/50 R19
Wheel rims size 6.5J x 17; 6.5J x 19
