Specifications: Toyota Proace City SWB 1.5 D-4D (75 Hp) 2020, 2021

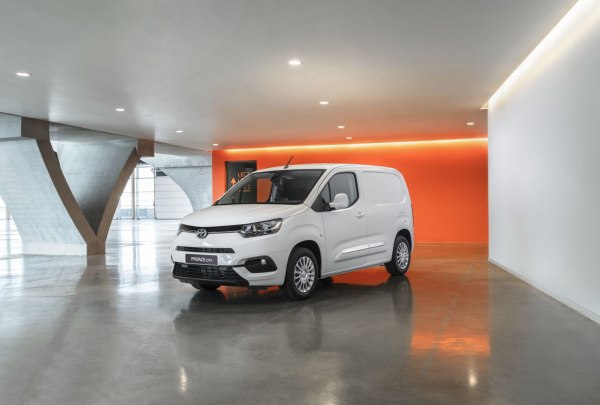

2020 Toyota Proace City SWB - Photo 1

Toyota Proace City SWB 1.5 D-4D (75 Hp) – Full specifications
General information
Brand Toyota
Model Proace City
Generation Proace City SWB
Modification (Engine) 1.5 D-4D (75 Hp)
Start of production April, 2020 year
End of production October, 2021 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 2-3
Doors 4
Performance specs
Combined fuel consumption (WLTP) 5.4-5.7 l/100 km
43.56 – 41.27 US mpg
52.31 – 49.56 UK mpg
18.52 – 17.54 km/l
CO2 emissions (WLTP) 142-149 g/km
Fuel consumption (economy) – urban (NEDC) 4.5-4.7 l/100 km
52.27 – 50.05 US mpg
62.77 – 60.1 UK mpg
22.22 – 21.28 km/l
Fuel consumption (economy) – extra urban (NEDC) 3.9-4.1 l/100 km
60.31 – 57.37 US mpg
72.43 – 68.9 UK mpg
25.64 – 24.39 km/l
Fuel consumption (economy) – combined (NEDC) 4.1-4.3 l/100 km
57.37 – 54.7 US mpg
68.9 – 65.69 UK mpg
24.39 – 23.26 km/l
CO2 emissions (NEDC) 109-114 g/km
Fuel Type Diesel
Acceleration 0 – 100 km/h 16.2 sec
Acceleration 0 – 62 mph 16.2 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 15.4 sec
Maximum speed 152 km/h
94.45 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 17.8 kg/Hp, 56.3 Hp/tonne
Weight-to-torque ratio 5.8 kg/Nm, 172.5 Nm/tonne
Engine specs
Power 75 Hp @ 3500 rpm.
Power per litre 50 Hp/l
Torque 230 Nm @ 1750 rpm.
169.64 lb.-ft. @ 1750 rpm.
Engine layout Front, Transverse
Engine Model/Code YH01
Engine displacement 1499 cm3
91.47 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Engine oil capacity 4 l
4.23 US qt | 3.52 UK qt
Engine oil specification Log in to see.Log in to see.
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1333 kg
2938.76 lbs.
Max. weight 2060 kg
4541.52 lbs.
Max load 727 kg
1602.76 lbs.
Trunk (boot) space – minimum 3300 l
116.54 cu. ft.
Trunk (boot) space – maximum 3800 l
134.2 cu. ft.
Max. roof load 150 kg
330.69 lbs.
Permitted trailer load with brakes (12%) 1230 kg
2711.69 lbs.
Permitted trailer load without brakes 740 kg
1631.42 lbs.
Permitted towbar download 74 kg
163.14 lbs.
Dimensions
Length 4403 mm
173.35 in.
Width 1848 mm
72.76 in.
Width with mirrors folded 1921 mm
75.63 in.
Width including mirrors 2107 mm
82.95 in.
Height 1880 mm
74.02 in.
Wheelbase 2785 mm
109.65 in.
Front track 1548-1563 mm
60.94 – 61.54 in.
Rear (Back) track 1568-1577 mm
61.73 – 62.09 in.
Front overhang 892 mm
35.12 in.
Rear overhang 726 mm
28.58 in.
Ride height (ground clearance) 145-182 mm
5.71 – 7.17 in.
Minimum turning circle (turning diameter) 10.8 m
35.43 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 5 gears, manual transmission
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65 R15 91H; 215/65 R16 98H; 205/60 R16 96H
Wheel rims size 6.5J x 15; 6.5J x 16
