Specifications: Toyota Proace City SWB 50 kWh (136 Hp) Electric 2022, 2023, 2024, 2025

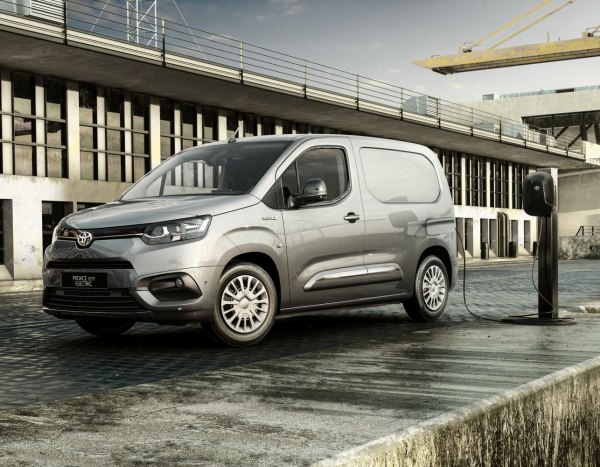

2020 Toyota Proace City SWB - Photo 1

Toyota Proace City SWB 50 kWh (136 Hp) Electric – Full specifications
General information
Brand Toyota
Model Proace City
Generation Proace City SWB
Modification (Engine) 50 kWh (136 Hp) Electric
Start of production April, 2022 year
Powertrain Architecture BEV (Electric Vehicle)
Body type Minivan
Seats 2-3
Doors 4
Performance specs
Fuel Type Electricity
Maximum speed 135 km/h
83.89 mph
Weight-to-power ratio 11.1 kg/Hp, 89.8 Hp/tonne
Weight-to-torque ratio 5.8 kg/Nm, 171.6 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 50 kWh
Battery technology Lithium-ion (Li-Ion)
Battery location Below the floor
All-electric range (WLTP) 278 km
172.74 mi
Average Energy consumption (WLTP) 19.9-20.4 kWh/100 km

32.03 – 32.83 kWh/100 mi
105 – 103 MPGe
5 – 4.9 km/kWh
3.1 – 3 mi/kWh
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 136 Hp
Electric motor Torque 260 Nm

191.77 lb.-ft.
Electric motor model/code ZK01
Electric motor location Front axle, Transverse
Electric motor type Synchronous
System power 136 Hp
System torque 260 Nm
191.77 lb.-ft.

Space, Volume and weights
Kerb Weight 1515 kg
3340 lbs.
Max. weight 2390 kg
5269.05 lbs.
Max load 875 kg
1929.04 lbs.
Trunk (boot) space – minimum 3300 l
116.54 cu. ft.
Trunk (boot) space – maximum 3800 l
134.2 cu. ft.
Max. roof load 150 kg
330.69 lbs.
Permitted trailer load with brakes (12%) 750 kg
1653.47 lbs.
Permitted towbar download 50 kg
110.23 lbs.
Dimensions
Length 4403 mm
173.35 in.
Width 1848 mm
72.76 in.
Width with mirrors folded 1921 mm
75.63 in.
Width including mirrors 2107 mm
82.95 in.
Height 1796-1860 mm
70.71 – 73.23 in.
Wheelbase 2785 mm
109.65 in.
Front track 1548-1563 mm
60.94 – 61.54 in.
Rear (Back) track 1568-1577 mm
61.73 – 62.09 in.
Front overhang 892 mm
35.12 in.
Rear overhang 726 mm
28.58 in.
Ride height (ground clearance) 145-182 mm
5.71 – 7.17 in.
Minimum turning circle (turning diameter) 10.8 m
35.43 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture One electric motor drives the front wheels.
Drive wheel Front wheel drive
Number of gears and type of gearbox 1 gears, automatic transmission
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 195/65 R15 91H; 215/65 R16 98H
Wheel rims size 6.5J x 15; 6.5J x 16
