Specifications: Toyota Raum 1.5 i 16V (94 Hp) 1997, 1998, 1999, 2000, 2001, 2002, 2003

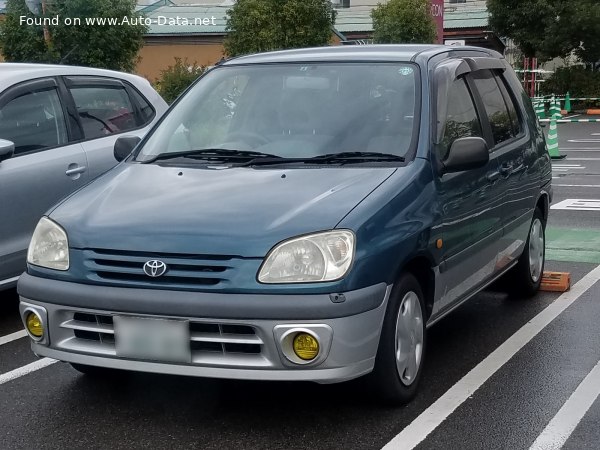

1997 Toyota Raum - Photo 1

Toyota Raum 1.5 i 16V (94 Hp) – Full specifications
General information
Brand Toyota
Model Raum
Generation Raum
Modification (Engine) 1.5 i 16V (94 Hp)
Start of production 1997 year
End of production 2003 year
Powertrain Architecture Internal Combustion engine
Body type Minivan
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 11 l/100 km
21.38 US mpg
25.68 UK mpg
9.09 km/l
Fuel consumption (economy) – extra urban 7 l/100 km
33.6 US mpg
40.35 UK mpg
14.29 km/l
Fuel Type Petrol (Gasoline)
Maximum speed 170 km/h
105.63 mph
Weight-to-power ratio 11.6 kg/Hp, 86.2 Hp/tonne
Weight-to-torque ratio 8.3 kg/Nm, 121.1 Nm/tonne
Engine specs
Power 94 Hp @ 5400 rpm.
Power per litre 62.8 Hp/l
Torque 132 Nm @ 4400 rpm.
97.36 lb.-ft. @ 4400 rpm.
Engine layout Front, Transverse
Engine displacement 1496 cm3
91.29 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 74 mm
2.91 in.
Piston Stroke 87 mm
3.43 in.
Compression ratio 9.8:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC

Space, Volume and weights
Kerb Weight 1090 kg
2403.04 lbs.
Max. weight 1365 kg
3009.31 lbs.
Max load 275 kg
606.27 lbs.
Fuel tank capacity 45 l
11.89 US gal | 9.9 UK gal
Dimensions
Length 4045 mm
159.25 in.
Width 1685 mm
66.34 in.
Height 1535 mm
60.43 in.
Wheelbase 2520 mm
99.21 in.
Front track 1400 mm
55.12 in.
Rear (Back) track 1395 mm
54.92 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 4 gears, automatic transmission
Front suspension Wishbone
Rear suspension Coil spring
Front brakes Ventilated discs
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 175/65 R14 S
