Specifications: Toyota RAV4 IV (facelift 2015) 2.5 (197 Hp) Hybrid e-CVT 2015, 2016, 2017, 2018

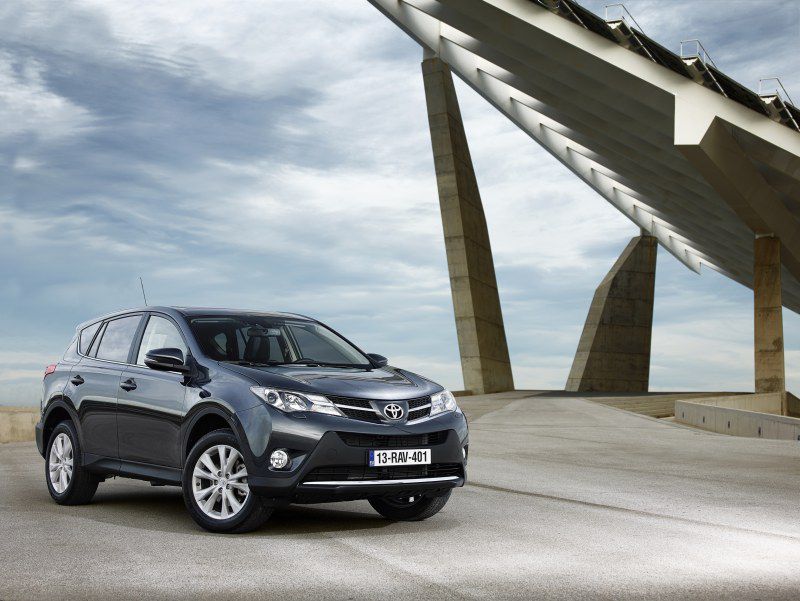

2016 Toyota RAV4 IV (facelift 2015) - Photo 1

Toyota RAV4 IV (facelift 2015) 2.5 (197 Hp) Hybrid e-CVT – Full specifications
General information
Brand Toyota
Model RAV4
Generation RAV4 IV (facelift 2015)
Modification (Engine) 2.5 (197 Hp) Hybrid e-CVT
Start of production 2015 year
End of production 2018 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 5.1 l/100 km
46.12 US mpg
55.39 UK mpg
19.61 km/l
Fuel consumption (economy) – extra urban 4.9 l/100 km
48 US mpg
57.65 UK mpg
20.41 km/l
Fuel consumption (economy) – combined 5 l/100 km
47.04 US mpg
56.5 UK mpg
20 km/l
CO2 emissions 117 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.3 sec
Acceleration 0 – 62 mph 8.3 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.9 sec
Maximum speed 180 km/h
111.85 mph
Emission standard Euro 6 W
Weight-to-power ratio 8.6 kg/Hp, 115.9 Hp/tonne
Weight-to-torque ratio 8.1 kg/Nm, 123.5 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 1.6 kWh
Battery voltage 244.8 V
Battery technology Nickel-metal hydride (NiMH)
Battery location Under the rear seats
All-electric range 1 km
0.62 mi
Electric motor 1
Electric motor power 143 Hp
Electric motor Torque 270 Nm

199.14 lb.-ft.
Electric motor location Integrated into the transmission
Electric motor type Synchronous
System power 197 Hp
Internal combustion engine specs
Power 155 Hp @ 5700 rpm.
Power per litre 62.1 Hp/l
Torque 210 Nm @ 4200-4400 rpm.
154.89 lb.-ft. @ 4200-4400 rpm.
Engine layout Front, Transverse
Engine Model/Code 2AR-FXE
Engine displacement 2494 cm3
152.19 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 90 mm
3.54 in.
Piston Stroke 98 mm
3.86 in.
Compression ratio 12.5:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, Dual VVT-i
Engine oil capacity 4.4 l
4.65 US qt | 3.87 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.5 l
7.93 US qt | 6.6 UK qt

Space, Volume and weights
Kerb Weight 1700-1860 kg
3747.86 – 4100.6 lbs.
Max. weight 2270 kg
5004.49 lbs.
Max load 410-570 kg
903.9 – 1256.63 lbs.
Trunk (boot) space – minimum 501 l
17.69 cu. ft.
Trunk (boot) space – maximum 1633 l
57.67 cu. ft.
Fuel tank capacity 56 l
14.79 US gal | 12.32 UK gal
Max. roof load 85 kg
187.39 lbs.
Permitted trailer load with brakes (12%) 1650 kg
3637.63 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 4605 mm
181.3 in.
Width 1845 mm
72.64 in.
Height 1675 mm
65.94 in.
Wheelbase 2660 mm
104.72 in.
Front track 1560-1570 mm
61.42 – 61.81 in.
Rear (Back) track 1560-1570 mm
61.42 – 61.81 in.
Ride height (ground clearance) 177 mm
6.97 in.
Minimum turning circle (turning diameter) 10.6-11.2 m
34.78 – 36.75 ft.
Approach angle 19°
Departure angle 22°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission e-CVT
Front suspension Independent type McPherson
Rear suspension Independent on trapezoidal lever
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/65 R17 H
Wheel rims size 6.5J 17; 7J 17
