Specifications: Toyota RAV4 V 2.5 (222 Hp) Hybrid E-Four e-CVT 2018, 2019, 2020, 2021

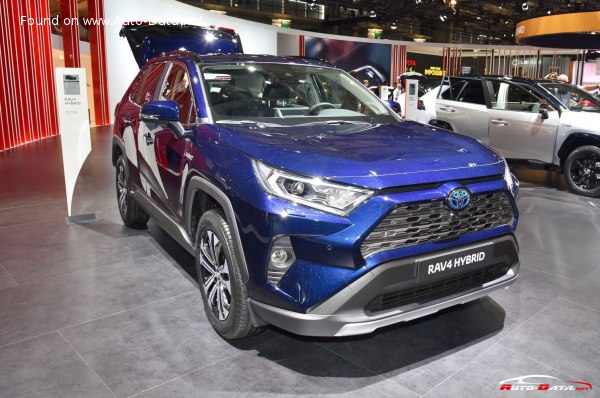

2019 Toyota RAV4 V - Photo 1

Toyota RAV4 V 2.5 (222 Hp) Hybrid E-Four e-CVT – Full specifications
General information
Brand Toyota
Model RAV4
Generation RAV4 V
Modification (Engine) 2.5 (222 Hp) Hybrid E-Four e-CVT
Start of production November, 2018 year
End of production September, 2021 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 4.4-4.7 l/100 km
53.46 – 50.05 US mpg
64.2 – 60.1 UK mpg
22.73 – 21.28 km/l
Fuel consumption (economy) – extra urban 4.7 l/100 km
50.05 US mpg
60.1 UK mpg
21.28 km/l
Fuel consumption (economy) – combined 4.5-4.6 l/100 km
52.27 – 51.13 US mpg
62.77 – 61.41 UK mpg
22.22 – 21.74 km/l
CO2 emissions 102-105 g/km
Fuel Type Petrol (Gasoline)
Acceleration 0 – 100 km/h 8.1 sec
Acceleration 0 – 62 mph 8.1 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 7.7 sec
Maximum speed 180 km/h
111.85 mph
Emission standard Euro 6d-TEMP
Weight-to-power ratio 7.4 kg/Hp, 135 Hp/tonne
Weight-to-torque ratio 7.4 kg/Nm, 134.3 Nm/tonne
Electric cars and hybrids specs
Battery voltage 244.8 V
Battery technology Nickel-metal hydride (NiMH)
Battery location Under the rear seats
Electric motor 1
Electric motor power 120 Hp
Electric motor Torque 202 Nm

148.99 lb.-ft.
Electric motor model/code 3NM
Electric motor location Integrated into the transmission
Electric motor type Synchronous
Electric motor 2
Electric motor power 54 Hp
Electric motor Torque 121 Nm

89.25 lb.-ft.
Electric motor model/code 4NM
Electric motor location Rear axle, Transverse
Electric motor type Synchronous
System power 222 Hp
Internal combustion engine specs
Power 177 Hp @ 6000 rpm.
Power per litre 71.2 Hp/l
Torque 221 Nm @ 3600-5200 rpm.
163 lb.-ft. @ 3600-5200 rpm.
Engine layout Front, Transverse
Engine Model/Code A25A-FXS
Engine displacement 2487 cm3
151.77 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 87.5 mm
3.44 in.
Piston Stroke 103.48 mm
4.07 in.
Compression ratio 14:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVT-iE
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.7 l
7.08 US qt | 5.9 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 1645-1730 kg
3626.6 – 3814 lbs.
Max. weight 2225 kg
4905.29 lbs.
Max load 495-580 kg
1091.29 – 1278.68 lbs.
Trunk (boot) space – minimum 580 l
20.48 cu. ft.
Trunk (boot) space – maximum 1690 l
59.68 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Permitted trailer load with brakes (12%) 1650 kg
3637.63 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Dimensions
Length 4600 mm
181.1 in.
Width 1855 mm
73.03 in.
Height 1685 mm
66.34 in.
Wheelbase 2690 mm
105.91 in.
Front track 1610 mm
63.39 in.
Rear (Back) track 1640 mm
64.57 in.
Front overhang 925 mm
36.42 in.
Rear overhang 985 mm
38.78 in.
Ride height (ground clearance) 190 mm
7.48 in.
Drag coefficient (Cd) 0.32
Approach angle 17.5°
Departure angle 20°
Drivetrain, brakes and suspension specs
Drivetrain Architecture An Internal combustion engine (ICE) drives the front wheels, one electric motor drives the front wheels, one electric motor drives the rear wheels. There is an ability for running in full electric or mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox automatic transmission e-CVT
Front suspension Independent type McPherson
Rear suspension Double wishbone
Front brakes Ventilated discs, 328 mm
Rear brakes Disc, 317 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/65 R17; 225/60 R18
Wheel rims size 7J x 17; 7J x 18
