Specifications: Toyota RAV4 V (facelift 2021) 2.5 (306 Hp) Plug-in Hybrid AWD-i eCVT 2021, 2022, 2023, 2024, 2025

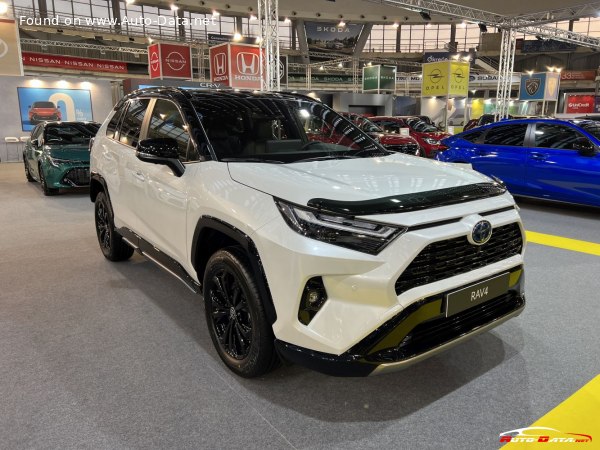

2021 Toyota RAV4 V (facelift 2021) - Photo 1

Toyota RAV4 V (facelift 2021) 2.5 (306 Hp) Plug-in Hybrid AWD-i eCVT – Full specifications
General information
Brand Toyota
Model RAV4
Generation RAV4 V (facelift 2021)
Modification (Engine) 2.5 (306 Hp) Plug-in Hybrid AWD-i eCVT
Start of production September, 2021 year
Powertrain Architecture PHEV (Plug-in Hybrid Electric Vehicle)
Body type SUV
Seats 5
Doors 5
Performance specs
Combined fuel consumption (WLTP) 1.0 l/100 km
235.21 US mpg
282.48 UK mpg
100 km/l
CO2 emissions (WLTP) 22 g/km
Fuel Type Petrol / electricity
Acceleration 0 – 100 km/h 6.0 sec
Acceleration 0 – 62 mph 6.0 sec
Acceleration 0 – 60 mph (Calculated by Auto-Data.net) 5.7 sec
Maximum speed 180 km/h
111.85 mph
Emission standard Euro 6d-ISC-FCM
Weight-to-power ratio 6 kg/Hp, 166.8 Hp/tonne
Weight-to-torque ratio 8.1 kg/Nm, 123.7 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 18.1 kWh
Battery voltage 355 V
Battery technology Lithium-ion (Li-Ion)
Battery location Below the floor
All-electric range (WLTP) 75 km
46.6 mi
Average Energy consumption (WLTP) 16.6 kWh/100 km

26.72 kWh/100 mi
126 MPGe
6 km/kWh
3.7 mi/kWh
Charging ports Log in to see.Log in to see.
Electric motor 1
Electric motor power 182 Hp
Electric motor Torque 270 Nm

199.14 lb.-ft.
Electric motor model/code 5NM
Electric motor location Between the combustion engine and the transmission
Electric motor type Synchronous
Electric motor 2
Electric motor power 54 Hp
Electric motor Torque 121 Nm

89.25 lb.-ft.
Electric motor model/code 4NM
Electric motor location Rear axle, Transverse
System power 306 Hp
Internal combustion engine specs
Power 185 Hp
Power per litre 74.4 Hp/l
Torque 227 Nm @ 3200-3700 rpm.
167.43 lb.-ft. @ 3200-3700 rpm.
Engine layout Front, Transverse
Engine Model/Code A25A-FXS
Engine displacement 2487 cm3
151.77 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 87.5 mm
3.44 in.
Piston Stroke 103.4 mm
4.07 in.
Compression ratio 14:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.5 l
4.76 US qt | 3.96 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.7 l
7.08 US qt | 5.9 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1835-1925 kg
4045.48 – 4243.9 lbs.
Max. weight 2510 kg
5533.6 lbs.
Max load 585-675 kg
1289.7 – 1488.12 lbs.
Trunk (boot) space – minimum 490 l
17.3 cu. ft.
Trunk (boot) space – maximum 1604 l
56.64 cu. ft.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Permitted trailer load with brakes (12%) 1500 kg
3306.93 lbs.
Permitted trailer load without brakes 750 kg
1653.47 lbs.
Permitted towbar download 70 kg
154.32 lbs.
Dimensions
Length 4600 mm
181.1 in.
Width 1855 mm
73.03 in.
Height 1685 mm
66.34 in.
Wheelbase 2690 mm
105.91 in.
Ride height (ground clearance) 180 mm
7.09 in.
Approach angle 17.5°
Departure angle 20°
Drivetrain, brakes and suspension specs
Drivetrain Architecture An Internal combustion engine (ICE) drives the front wheels, one electric motor drives the front wheels, one electric motor drives the rear wheels. There is an ability for running in full electric or mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox automatic transmission eCVT
Front suspension Independent type McPherson
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/60 R18; 235/55 R19
Wheel rims size 7.0J x 18; 7.5J x 19
