Specifications: Toyota Sequoia II 4.6 V8 VVT-i (310 Hp) 4WD ECT-i 2009, 2010, 2011, 2012

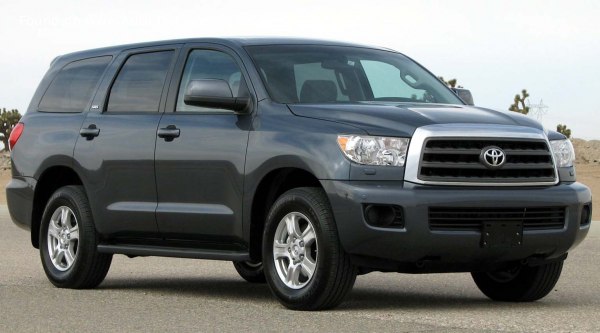

2008 Toyota Sequoia II - Photo 1

Toyota Sequoia II 4.6 V8 VVT-i (310 Hp) 4WD ECT-i – Full specifications
General information
Brand Toyota
Model Sequoia
Generation Sequoia II
Modification (Engine) 4.6 V8 VVT-i (310 Hp) 4WD ECT-i
Start of production 2009 year
End of production 2012 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 7-8
Doors 5
Performance specs
Fuel consumption (economy) – urban 18.1 l/100 km
13 US mpg
15.61 UK mpg
5.52 km/l
Fuel consumption (economy) – extra urban 13.1 l/100 km
17.96 US mpg
21.56 UK mpg
7.63 km/l
Fuel Type Petrol (Gasoline)
Emission standard ULEV
Weight-to-power ratio 8.7 kg/Hp, 115.5 Hp/tonne
Weight-to-torque ratio 6.1 kg/Nm, 165 Nm/tonne
Engine specs
Power 310 Hp @ 5400 rpm.
Power per litre 67.3 Hp/l
Torque 443 Nm @ 3400 rpm.
326.74 lb.-ft. @ 3400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 1UR-FE
Engine displacement 4608 cm3
281.2 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 94 mm
3.7 in.
Piston Stroke 83 mm
3.27 in.
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 7.5 l
7.93 US qt | 6.6 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 14.8 l
15.64 US qt | 13.02 UK qt

Space, Volume and weights
Kerb Weight 2685 kg
5919.41 lbs.
Max. weight 3311 kg
7299.51 lbs.
Max load 626 kg
1380.09 lbs.
Trunk (boot) space – minimum 535 l
18.89 cu. ft.
Trunk (boot) space – maximum 3401 l
120.11 cu. ft.
Fuel tank capacity 100 l
26.42 US gal | 22 UK gal
Permitted trailer load with brakes (12%) 3175 kg
6999.68 lbs.
Dimensions
Length 5210 mm
205.12 in.
Width 2030 mm
79.92 in.
Height 1955 mm
76.97 in.
Wheelbase 3100 mm
122.05 in.
Front track 1725 mm
67.91 in.
Rear (Back) track 1755 mm
69.09 in.
Ride height (ground clearance) 254 mm
10 in.
Minimum turning circle (turning diameter) 11.9 m
39.04 ft.
Approach angle 27°
Departure angle 21°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission ECT-i
Front suspension Coil spring, Double wishbone, Transverse stabilizer
Rear suspension Double wishbone, Transverse stabilizer, Coil spring
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 275/65 R18
Wheel rims size 8J x 18
