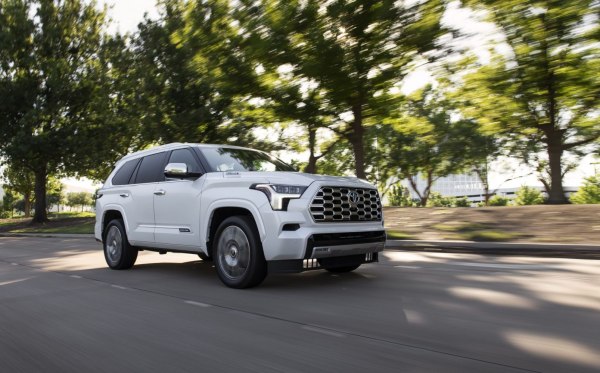

2023 Toyota Sequoia III (XK80) - Photo 1

Toyota Sequoia III (XK80) 3.5 V6 i-FORCE MAX (437 Hp) Hybrid 4WD ECT-i – Full specifications
General information
Brand Toyota
Model Sequoia
Generation Sequoia III (XK80)
Modification (Engine) 3.5 V6 i-FORCE MAX (437 Hp) Hybrid 4WD ECT-i
Start of production June, 2022 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV
Seats 7-8
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Emission standard LEV III
Weight-to-power ratio 6.3 kg/Hp, 159.8 Hp/tonne
Weight-to-torque ratio 3.5 kg/Nm, 288.8 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 1.87 kWh
Battery voltage 288 V
Battery technology Nickel-metal hydride (NiMH)
Electric motor 1
Electric motor power 49 Hp
Electric motor Torque 250 Nm

184.39 lb.-ft.
Electric motor location Between the combustion engine and the transmission
Electric motor type Synchronous
Internal combustion engine specs
Power 437 Hp @ 5200 rpm.
Power per litre 126.9 Hp/l
Torque 790 Nm @ 2400 rpm.
582.67 lb.-ft. @ 2400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code V35A-FTS
Engine displacement 3445 cm3
210.23 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 85.5 mm
3.37 in.
Piston Stroke 100 mm
3.94 in.
Compression ratio 10.4:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Twin-Turbo, Intercooler
Valvetrain DOHC, Dual VVT-i
Engine oil capacity 7.3 l
7.71 US qt | 6.42 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 14.5 l
15.32 US qt | 12.76 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2735-2805 kg
6029.64 – 6183.97 lbs.
Max. weight 3454 kg
7614.77 lbs.
Max load 649-719 kg
1430.8 – 1585.12 lbs.
Trunk (boot) space – minimum 326-631 l
11.51 – 22.28 cu. ft.
Trunk (boot) space – maximum 2461 l
86.91 cu. ft.
Fuel tank capacity 85 l
22.45 US gal | 18.7 UK gal
Permitted trailer load with brakes (12%) 4137 kg
9120.52 lbs.
Permitted towbar download 414 kg
912.71 lbs.
Dimensions
Length 5286 mm
208.11 in.
Width 2022 mm
79.61 in.
Height 1885-1974 mm
74.21 – 77.72 in.
Wheelbase 3099 mm
122.01 in.
Front track 1742-1768 mm
68.58 – 69.61 in.
Rear (Back) track 1737-1763 mm
68.39 – 69.41 in.
Front overhang 965 mm
37.99 in.
Rear overhang 1219 mm
47.99 in.
Ride height (ground clearance) 213-231 mm
8.39 – 9.09 in.
Minimum turning circle (turning diameter) 12.3-13.6 m
40.35 – 44.62 ft.
Approach angle 15-23°
Departure angle 20°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the rear wheels of the vehicle, capable of running in full electric or mixed mode, and if necessary through the electrically or mechanically controlled clutch, the front wheels are driven.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 10 gears, automatic transmission ECT-i
Front suspension Double wishbone
Rear suspension Independent multi-link suspension
Front brakes Ventilated discs, 353.06 mm
Rear brakes Ventilated discs, 345.44 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 265/70 R18; 285/65 R18; 265/60 R20; 265/50 R22
Wheel rims size 18; 20; 22
