Specifications: Toyota Tacoma III Double Cab (facelift 2020) 3.5 V6 D-4S (278 Hp) 4WD 2020, 2021, 2022, 2023

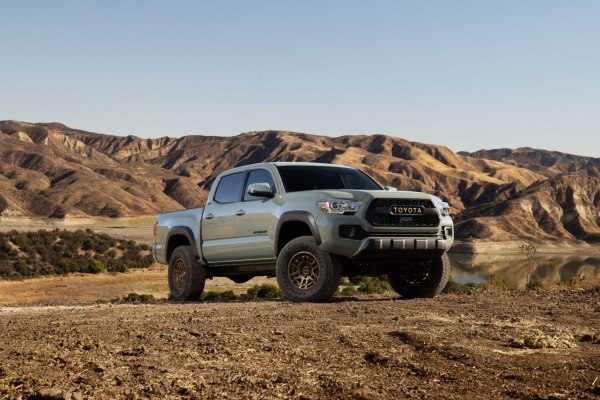

2020 Toyota Tacoma III Double Cab (facelift 2020) - Photo 1

Toyota Tacoma III Double Cab (facelift 2020) 3.5 V6 D-4S (278 Hp) 4WD – Full specifications
General information
Brand Toyota
Model Tacoma
Generation Tacoma III Double Cab (facelift 2020)
Modification (Engine) 3.5 V6 D-4S (278 Hp) 4WD
Start of production 2020 year
End of production 2023 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 13.8 l/100 km
17.04 US mpg
20.47 UK mpg
7.25 km/l
Fuel consumption (economy) – extra urban 11.8 l/100 km
19.93 US mpg
23.94 UK mpg
8.47 km/l
Fuel consumption (economy) – combined 13.1 l/100 km
17.96 US mpg
21.56 UK mpg
7.63 km/l
Fuel Type Petrol (Gasoline)
Emission standard ULEV III
Weight-to-power ratio 7.3 kg/Hp, 137.3 Hp/tonne
Weight-to-torque ratio 5.6 kg/Nm, 177.3 Nm/tonne
Engine specs
Power 278 Hp @ 6000 rpm.
Power per litre 80.4 Hp/l
Torque 359 Nm @ 4600 rpm.
264.78 lb.-ft. @ 4600 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 2GR-FKS
Engine displacement 3456 cm3
210.9 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 93.98 mm
3.7 in.
Piston Stroke 83.06 mm
3.27 in.
Compression ratio 11.8:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain VVT-i
Engine oil capacity 5.6 l
5.92 US qt | 4.93 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 9.7 l
10.25 US qt | 8.53 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 2025 kg
4464.36 lbs.
Max. weight 2540 kg
5599.74 lbs.
Max load 515 kg
1135.38 lbs.
Fuel tank capacity 80 l
21.13 US gal | 17.6 UK gal
Permitted towbar download 159 kg
350.53 lbs.
Dimensions
Length 5392 mm
212.28 in.
Width 1890 mm
74.41 in.
Height 1793-1819 mm
70.59 – 71.61 in.
Wheelbase 3236 mm
127.4 in.
Front track 1600-1626 mm
62.99 – 64.02 in.
Rear (Back) track 1605-1631 mm
63.19 – 64.21 in.
Ride height (ground clearance) 239 mm
9.41 in.
Drag coefficient (Cd) 0.386
Minimum turning circle (turning diameter) 12.4 m
40.68 ft.
Approach angle 29-35°
Departure angle 23.5-23.9°
Ramp-over (brakeover) angle 21-23.9°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels permanently, and the front wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, manual transmission
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Transverse stabilizer, Leaf spring
Front brakes Ventilated discs, 273.05 mm
Rear brakes Drum, 254 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 265/70 R16; 265 65 R17
Wheel rims size 16; 17
