Specifications: Toyota Tacoma IV Double Cab 2.4 i-FORCE MAX (326 Hp) Hybrid 4×4 ECT-i 2024, 2025

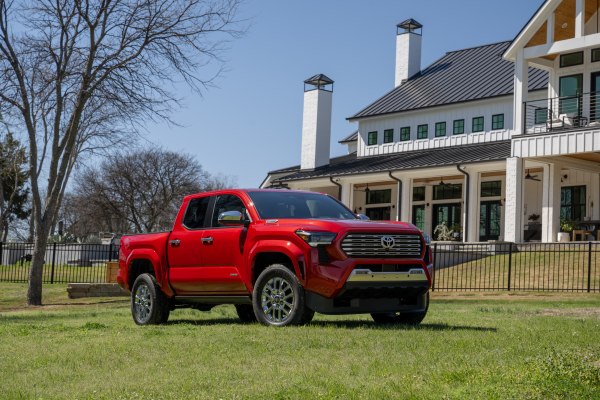

2024 Toyota Tacoma IV Double Cab - Photo 1

Toyota Tacoma IV Double Cab 2.4 i-FORCE MAX (326 Hp) Hybrid 4×4 ECT-i – Full specifications
General information
Brand Toyota
Model Tacoma
Generation Tacoma IV Double Cab
Modification (Engine) 2.4 i-FORCE MAX (326 Hp) Hybrid 4×4 ECT-i
Start of production April, 2024 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type Pick-up
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban (EPA) 10.2-10.7 l/100 km
23.06 – 21.98 US mpg
27.69 – 26.4 UK mpg
9.8 – 9.35 km/l
Fuel consumption (economy) – extra urban (EPA) 9.8 l/100 km
24 US mpg
28.82 UK mpg
10.2 km/l
Fuel consumption (economy) – combined (EPA) 9.8-10.2 l/100 km
24 – 23.06 US mpg
28.82 – 27.69 UK mpg
10.2 – 9.8 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 7 kg/Hp, 142.9 Hp/tonne
Weight-to-torque ratio 3.6 kg/Nm, 276.1 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 1.87 kWh
Battery technology Nickel-metal hydride (NiMH)
Electric motor 1
Electric motor power 48 Hp
Electric motor location Between the combustion engine and the transmission
System power 326 Hp @ 6000 rpm.
System torque 630 Nm @ 1700 rpm.
464.66 lb.-ft. @ 1700 rpm.
Internal combustion engine specs
Power 278 Hp @ 6000 rpm.
Power per litre 116.2 Hp/l
Torque 430 Nm @ 1700 rpm.
317.15 lb.-ft. @ 1700 rpm.
Engine layout Front, Longitudinal
Engine Model/Code T24A-FTS
Engine displacement 2393 cm3
146.03 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 87.5 mm
3.44 in.
Piston Stroke 99.5 mm
3.92 in.
Compression ratio 11:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Twin-scroll turbo, Intercooler
Valvetrain DOHC
Engine oil capacity 5.3 l
5.6 US qt | 4.66 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 11.9 l
12.57 US qt | 10.47 UK qt
Engine systems Start & Stop System

Space, Volume and weights
Kerb Weight 2282-2431 kg
5030.95 – 5359.44 lbs.
Max. weight 3023-3100 kg
6664.57 – 6834.33 lbs.
Max load 669-741 kg
1474.89 – 1633.63 lbs.
Fuel tank capacity 69 l
18.23 US gal | 15.18 UK gal
Permitted trailer load with brakes (12%) 2722 kg
6000.98 lbs.
Permitted towbar download 272 kg
599.66 lbs.
Dimensions
Length 5410 mm
212.99 in.
Width 1979 mm
77.91 in.
Height 1892-1895 mm
74.49 – 74.61 in.
Wheelbase 3350 mm
131.89 in.
Front track 1676-1748 mm
65.98 – 68.82 in.
Rear (Back) track 1676-1748 mm
65.98 – 68.82 in.
Ride height (ground clearance) 292 mm
11.5 in.
Minimum turning circle (turning diameter) 13.5-14.2 m
44.29 – 46.59 ft.
Approach angle 35.7°
Departure angle 25.3°
Ramp-over (brakeover) angle 27.4°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the rear wheels of the vehicle, capable of running in full electric or mixed mode, and if necessary through the electrically or mechanically controlled clutch, the front wheels are driven.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 8 gears, automatic transmission ECT-i
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Rigid axle suspension, Transverse stabilizer, Coil spring
Front brakes Ventilated discs, 340 mm
Rear brakes Ventilated discs, 335 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 265/70 R17; 265/65 R18; 265/70 R18
Wheel rims size 17; 18
