Specifications: Toyota Tacoma IV XtraCab 2.4 i-FORCE (228 Hp) ECT-i 2023, 2024, 2025

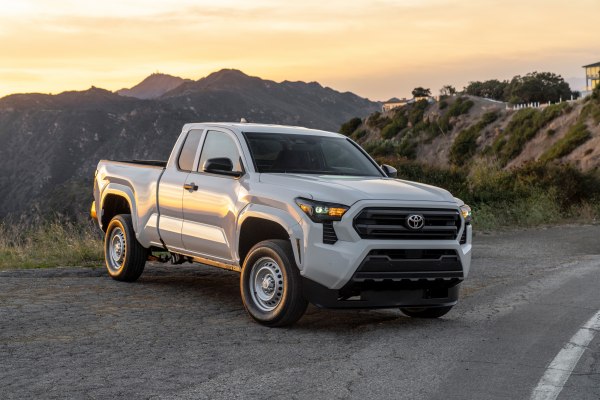

2024 Toyota Tacoma IV XtraCab - Photo 1

Toyota Tacoma IV XtraCab 2.4 i-FORCE (228 Hp) ECT-i – Full specifications
General information
Brand Toyota
Model Tacoma
Generation Tacoma IV XtraCab
Modification (Engine) 2.4 i-FORCE (228 Hp) ECT-i
Start of production November, 2023 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 2
Doors 2
Performance specs
Fuel consumption (economy) – urban (EPA) 11.8 l/100 km
19.93 US mpg
23.94 UK mpg
8.47 km/l
Fuel consumption (economy) – extra urban (EPA) 9 l/100 km
26.13 US mpg
31.39 UK mpg
11.11 km/l
Fuel consumption (economy) – combined (EPA) 10.2 l/100 km
23.06 US mpg
27.69 UK mpg
9.8 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 8.2 kg/Hp, 121.3 Hp/tonne
Weight-to-torque ratio 5.7 kg/Nm, 175 Nm/tonne
Engine specs
Power 228 Hp @ 6000 rpm.
Power per litre 95.3 Hp/l
Torque 329 Nm @ 1600 rpm.
242.66 lb.-ft. @ 1600 rpm.
Engine layout Front, Longitudinal
Engine Model/Code T24A-FTS
Engine displacement 2393 cm3
146.03 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 87.5 mm
3.44 in.
Piston Stroke 99.5 mm
3.92 in.
Compression ratio 11:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Twin-scroll turbo, Intercooler
Valvetrain DOHC
Engine oil capacity 5.3 l
5.6 US qt | 4.66 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12.1 l
12.79 US qt | 10.65 UK qt

Space, Volume and weights
Kerb Weight 1880-1905 kg
4144.69 – 4199.81 lbs.
Max. weight 2542 kg
5604.15 lbs.
Max load 637-662 kg
1404.34 – 1459.46 lbs.
Fuel tank capacity 69 l
18.23 US gal | 15.18 UK gal
Permitted trailer load with brakes (12%) 1588 kg
3500.94 lbs.
Permitted towbar download 295 kg
650.36 lbs.
Dimensions
Length 5410 mm
212.99 in.
Width 1953 mm
76.89 in.
Height 1880 mm
74.02 in.
Wheelbase 3350 mm
131.89 in.
Front track 1666 mm
65.59 in.
Rear (Back) track 1666 mm
65.59 in.
Ride height (ground clearance) 274 mm
10.79 in.
Minimum turning circle (turning diameter) 14 m
45.93 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 8 gears, automatic transmission ECT-i
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Rigid axle suspension, Leaf spring
Front brakes Ventilated discs, 320 mm
Rear brakes Ventilated discs, 310 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/70 R17
Wheel rims size 17
