Specifications: Toyota Tundra II CrewMax (facelift 2017) 5.7 V8 (381 Hp) ECT-i 2017, 2018, 2019, 2020, 2021

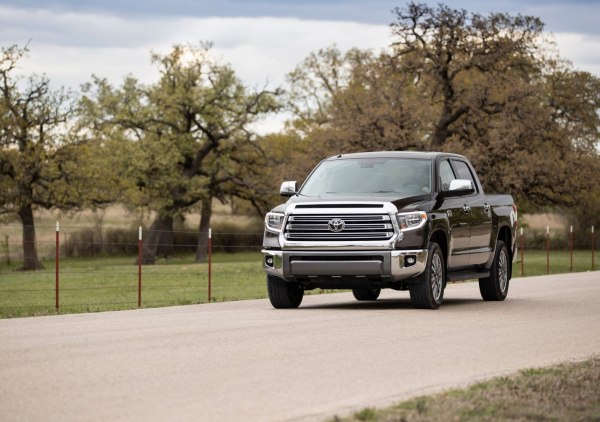

2018 Toyota Tundra II CrewMax (facelift 2017) - Photo 1

Toyota Tundra II CrewMax (facelift 2017) 5.7 V8 (381 Hp) ECT-i – Full specifications
General information
Brand Toyota
Model Tundra
Generation Tundra II CrewMax (facelift 2017)
Modification (Engine) 5.7 V8 (381 Hp) ECT-i
Start of production 2017 year
End of production 2021 year
Powertrain Architecture Internal Combustion engine
Body type Pick-up
Seats 5
Doors 4
Performance specs
Fuel consumption (economy) – urban 18.1 l/100 km
13 US mpg
15.61 UK mpg
5.52 km/l
Fuel consumption (economy) – extra urban 13.1 l/100 km
17.96 US mpg
21.56 UK mpg
7.63 km/l
Fuel consumption (economy) – combined 15.7 l/100 km
14.98 US mpg
17.99 UK mpg
6.37 km/l
Fuel Type Petrol (Gasoline)
Emission standard LEV 3 ULEV 70
Weight-to-power ratio 6.4 kg/Hp, 157.3 Hp/tonne
Weight-to-torque ratio 4.5 kg/Nm, 224.6 Nm/tonne
Engine specs
Power 381 Hp @ 5600 rpm.
Power per litre 67.3 Hp/l
Torque 544 Nm @ 3600 rpm.
401.23 lb.-ft. @ 3600 rpm.
Engine layout Front, Longitudinal
Engine Model/Code 3UR-FE
Engine displacement 5663 cm3
345.58 cu. in.
Number of cylinders 8
Engine configuration V-engine
Cylinder Bore 93.98 mm
3.7 in.
Piston Stroke 102.11 mm
4.02 in.
Compression ratio 10.2:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, Dual VVT-i
Engine oil capacity 7.5 l
7.93 US qt | 6.6 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12.1 l
12.79 US qt | 10.65 UK qt

Space, Volume and weights
Kerb Weight 2422-2440 kg
5339.6 – 5379.28 lbs.
Max. weight 3084-3175 kg
6799.06 – 6999.68 lbs.
Max load 662-735 kg
1459.46 – 1620.4 lbs.
Fuel tank capacity 144 l
38.04 US gal | 31.68 UK gal
Permitted trailer load with brakes (12%) 4581 kg
10099.38 lbs.
Permitted towbar download 458 kg
1009.72 lbs.
Dimensions
Length 5814 mm
228.9 in.
Width 2029 mm
79.88 in.
Height 1925 mm
75.79 in.
Wheelbase 3701 mm
145.71 in.
Front track 1725 mm
67.91 in.
Rear (Back) track 1725 mm
67.91 in.
Ride height (ground clearance) 254-264 mm
10 – 10.39 in.
Drag coefficient (Cd) 0.37
Approach angle 26°
Departure angle 16°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the rear wheels of the vehicle.
Drive wheel Rear wheel drive
Number of gears and type of gearbox 6 gears, automatic transmission ECT-i
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Rigid axle suspension, Leaf spring
Front brakes Ventilated discs
Rear brakes Ventilated discs
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 255/70 R18; 275/55 R20
Wheel rims size 8J x 18; 8J x 20
