Specifications: Toyota Tundra III CrewMax Short Bed TRD Pro 3.5 V6 i-FORCE MAX (437 Hp) Hybrid 4WD-i ECT-i 2021, 2022, 2023, 2024, 2025

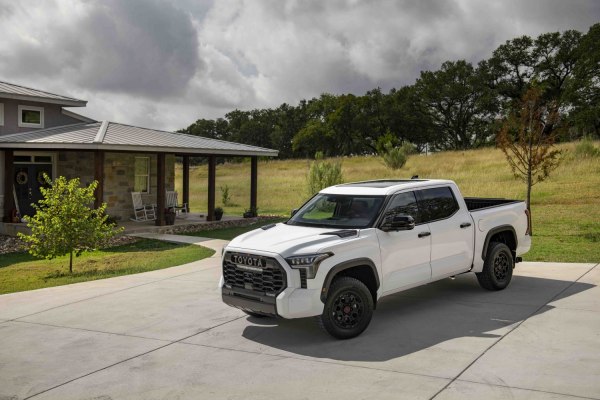

2022 Toyota Tundra III CrewMax Short Bed - Photo 1

Toyota Tundra III CrewMax Short Bed TRD Pro 3.5 V6 i-FORCE MAX (437 Hp) Hybrid 4WD-i ECT-i – Full specifications
General information
Brand Toyota
Model Tundra
Generation Tundra III CrewMax Short Bed
Modification (Engine) TRD Pro 3.5 V6 i-FORCE MAX (437 Hp) Hybrid 4WD-i ECT-i
Start of production September, 2021 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type Pick-up
Seats 5
Doors 4
Performance specs
Fuel Type Petrol (Gasoline)
Emission standard LEV-III
Weight-to-power ratio 6.2 kg/Hp, 160.3 Hp/tonne
Weight-to-torque ratio 3.5 kg/Nm, 289.8 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 1.87 kWh
Battery voltage 288 V
Battery technology Nickel-metal hydride (NiMH)
Battery location Under the front seats
Max speed (electric) 29 km/h

18.02 mph
Electric motor 1
Electric motor power 49 Hp
Electric motor Torque 250 Nm

184.39 lb.-ft.
Electric motor location Between the combustion engine and the transmission
Electric motor type Synchronous
Internal combustion engine specs
Power 437 Hp @ 5200 rpm.
Power per litre 126.9 Hp/l
Torque 790 Nm @ 2400 rpm.
582.67 lb.-ft. @ 2400 rpm.
Engine layout Front, Longitudinal
Engine Model/Code V35A-FTS
Engine displacement 3445 cm3
210.23 cu. in.
Number of cylinders 6
Engine configuration V-engine
Cylinder Bore 85.5 mm
3.37 in.
Piston Stroke 100 mm
3.94 in.
Compression ratio 10.4:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Twin-Turbo, Intercooler
Valvetrain DOHC, Dual VVT-i
Engine oil capacity 7.3 l
7.71 US qt | 6.42 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 12.4 l
13.1 US qt | 10.91 UK qt
Engine systems Particulate filter

Space, Volume and weights
Kerb Weight 2726-2765 kg
6009.8 – 6095.78 lbs.
Max. weight 3279-3529 kg
7228.96 – 7780.11 lbs.
Max load 553-764 kg
1219.16 – 1684.33 lbs.
Fuel tank capacity 122 l
32.23 US gal | 26.84 UK gal
Permitted trailer load with brakes (12%) 5069 kg
11175.23 lbs.
Permitted towbar download 507 kg
1117.74 lbs.
Dimensions
Length 5933 mm
233.58 in.
Width 2073 mm
81.61 in.
Height 1981 mm
77.99 in.
Wheelbase 3701 mm
145.71 in.
Front track 1763 mm
69.41 in.
Rear (Back) track 1763 mm
69.41 in.
Ride height (ground clearance) 229 mm
9.02 in.
Drag coefficient (Cd) 0.36
Minimum turning circle (turning diameter) 15.2 m
49.87 ft.
Approach angle 26.2°
Departure angle 24.2°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and the electric motor permanently drive the rear wheels of the vehicle, capable of running in full electric or mixed mode, and if necessary through the electrically or mechanically controlled clutch, the front wheels are driven.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 10 gears, automatic transmission ECT-i
Front suspension Double wishbone, Transverse stabilizer
Rear suspension Rigid axle suspension, Coil spring
Front brakes Ventilated discs, 353 mm
Rear brakes Ventilated discs, 345 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 285/65 R18
Wheel rims size 8J x 18
