Specifications: Toyota Vanguard 240S (170 Hp) CVT-i 2008, 2009, 2010, 2011, 2012, 2013

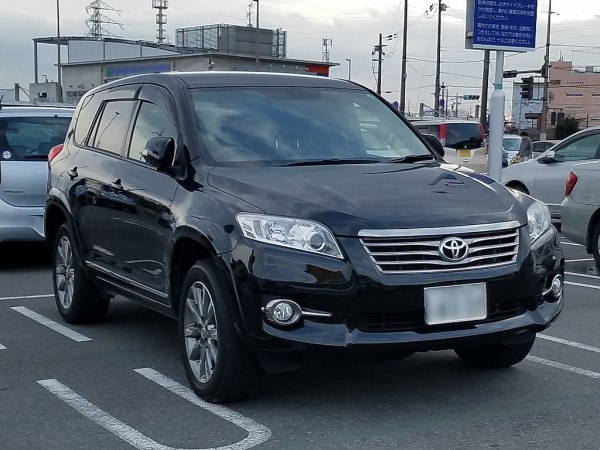

2010 Toyota Vanguard - Photo 1

Toyota Vanguard 240S (170 Hp) CVT-i – Full specifications
General information
Brand Toyota
Model Vanguard
Generation Vanguard
Modification (Engine) 240S (170 Hp) CVT-i
Start of production 2008 year
End of production 2013 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5-7
Doors 5
Performance specs
Fuel consumption (economy) – combined 7.7 l/100 km
30.55 US mpg
36.69 UK mpg
12.99 km/l
CO2 emissions 179 g/km
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 9 kg/Hp, 111.1 Hp/tonne
Weight-to-torque ratio 6.8 kg/Nm, 146.4 Nm/tonne
Engine specs
Power 170 Hp @ 6000 rpm.
Power per litre 72 Hp/l
Torque 224 Nm @ 4000 rpm.
165.21 lb.-ft. @ 4000 rpm.
Engine layout Front, Transverse
Engine Model/Code 2AZ-FE
Engine displacement 2362 cm3
144.14 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 88.5 mm
3.48 in.
Piston Stroke 96 mm
3.78 in.
Compression ratio 9.8:1
Fuel injection system Direct injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.2 l
6.55 US qt | 5.46 UK qt

Space, Volume and weights
Kerb Weight 1530-1560 kg
3373.07 – 3439.21 lbs.
Max. weight 1905-1945 kg
4199.81 – 4287.99 lbs.
Max load 375-385 kg
826.73 – 848.78 lbs.
Fuel tank capacity 60 l
15.85 US gal | 13.2 UK gal
Dimensions
Length 4570 mm
179.92 in.
Width 1855 mm
73.03 in.
Height 1685-1690 mm
66.34 – 66.54 in.
Wheelbase 2660 mm
104.72 in.
Front track 1560 mm
61.42 in.
Rear (Back) track 1560 mm
61.42 in.
Ride height (ground clearance) 190 mm
7.48 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox 1 gears, automatic transmission CVT-i
Tires size 225/65 R17
Wheel rims size 7J x 17
