Specifications: Toyota Venza I (AV10, facelift 2012) 2.7i (181 Hp) AWD ECT-i 2012, 2013, 2014, 2015, 2016, 2017

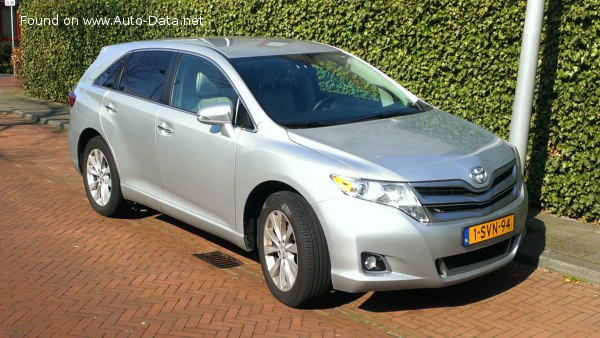

2013 Toyota Venza I (AV10, facelift 2012) - Photo 1

Toyota Venza I (AV10, facelift 2012) 2.7i (181 Hp) AWD ECT-i – Full specifications
General information
Brand Toyota
Model Venza
Generation Venza I (AV10, facelift 2012)
Modification (Engine) 2.7i (181 Hp) AWD ECT-i
Start of production May, 2012 year
End of production 2017 year
Powertrain Architecture Internal Combustion engine
Body type Station wagon (estate)
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 11.8 l/100 km
19.93 US mpg
23.94 UK mpg
8.47 km/l
Fuel consumption (economy) – extra urban 9 l/100 km
26.13 US mpg
31.39 UK mpg
11.11 km/l
Fuel Type Petrol (Gasoline)
Emission standard ULEV-II
Weight-to-power ratio 9.9 kg/Hp, 101.2 Hp/tonne
Weight-to-torque ratio 7.2 kg/Nm, 138.1 Nm/tonne
Engine specs
Power 181 Hp @ 5800 rpm.
Power per litre 67.7 Hp/l
Torque 247 Nm @ 4200 rpm.
182.18 lb.-ft. @ 4200 rpm.
Engine layout Front, Transverse
Engine Model/Code 1AR-FE
Engine displacement 2672 cm3
163.06 cu. in.
Number of cylinders 4
Engine configuration Inline
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, D-VVT-i
Engine oil capacity 4.4 l
4.65 US qt | 3.87 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 7.1 l
7.5 US qt | 6.25 UK qt

Space, Volume and weights
Kerb Weight 1789 kg
3944.07 lbs.
Max. weight 2341 kg
5161.02 lbs.
Max load 552 kg
1216.95 lbs.
Trunk (boot) space – minimum 974 l
34.4 cu. ft.
Trunk (boot) space – maximum 1988 l
70.21 cu. ft.
Fuel tank capacity 67 l
17.7 US gal | 14.74 UK gal
Permitted trailer load with brakes (12%) 454 kg
1000.9 lbs.
Dimensions
Length 4801 mm
189.02 in.
Width 1905 mm
75 in.
Height 1610 mm
63.39 in.
Wheelbase 2776 mm
109.29 in.
Front track 1631 mm
64.21 in.
Rear (Back) track 1636 mm
64.41 in.
Ride height (ground clearance) 206 mm
8.11 in.
Minimum turning circle (turning diameter) 12.4 m
40.68 ft.
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 6 gears, automatic transmission ECT-i
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension McPherson
Front brakes Ventilated discs, 325 mm
Rear brakes Disc, 297 mm
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 245/55 R19 103S
Wheel rims size 19
