Specifications: Toyota Vitz II 1.0 i 12V (71 Hp) 2005, 2006, 2007, 2008, 2009, 2010, 2011

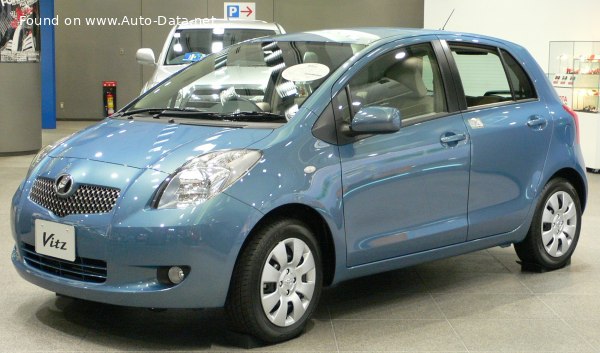

2006 Toyota Vitz II - Photo 1

Toyota Vitz II 1.0 i 12V (71 Hp) – Full specifications
General information
Brand Toyota
Model Vitz
Generation Vitz II
Modification (Engine) 1.0 i 12V (71 Hp)
Start of production 2005 year
End of production 2011 year
Powertrain Architecture Internal Combustion engine
Body type Hatchback
Seats 5
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 14.1 kg/Hp, 71 Hp/tonne
Weight-to-torque ratio 10.6 kg/Nm, 94 Nm/tonne
Engine specs
Power 71 Hp @ 6000 rpm.
Power per litre 71.3 Hp/l
Torque 94 Nm @ 3600 rpm.
69.33 lb.-ft. @ 3600 rpm.
Engine layout Front, Transverse
Engine Model/Code 1KR-FE
Engine displacement 996 cm3
60.78 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 69 mm
2.72 in.
Piston Stroke 66.7 mm
2.63 in.
Compression ratio 10:1
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC
Engine oil capacity 3.2 l
3.38 US qt | 2.82 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4.8 l
5.07 US qt | 4.22 UK qt

Space, Volume and weights
Kerb Weight 1000 kg
2204.62 lbs.
Max. weight 1275 kg
2810.89 lbs.
Max load 275 kg
606.27 lbs.
Fuel tank capacity 42 l
11.1 US gal | 9.24 UK gal
Dimensions
Length 3750 mm
147.64 in.
Width 1695 mm
66.73 in.
Height 1520 mm
59.84 in.
Wheelbase 2460 mm
96.85 in.
Front track 1470 mm
57.87 in.
Rear (Back) track 1460 mm
57.48 in.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Front suspension Independent, type McPherson with coil spring and anti-roll bar
Rear suspension Torsion
Front brakes Disc
Rear brakes Drum
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
