Specifications: Toyota Wildlander 2.0L (171 Hp) E-FOUR CVT 2019, 2020, 2021, 2022, 2023, 2024, 2025

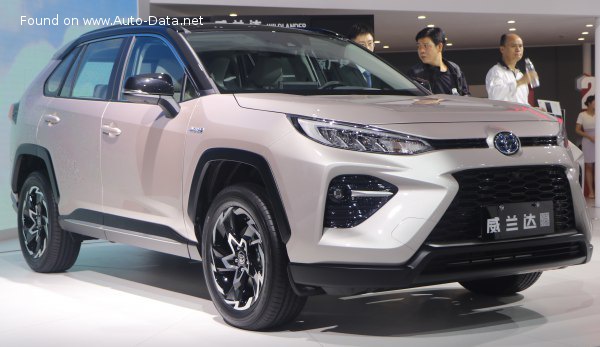

2020 Toyota Wildlander - Photo 1

Toyota Wildlander 2.0L (171 Hp) E-FOUR CVT – Full specifications
General information
Brand Toyota
Model Wildlander
Generation Wildlander
Modification (Engine) 2.0L (171 Hp) E-FOUR CVT
Start of production 2019 year
Powertrain Architecture Internal Combustion engine
Body type SUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – combined 6.3-6.4 l/100 km
37.34 – 36.75 US mpg
44.84 – 44.14 UK mpg
15.87 – 15.63 km/l
Fuel Type Petrol (Gasoline)
Maximum speed 180 km/h
111.85 mph
Weight-to-power ratio 9.4 kg/Hp, 105.9 Hp/tonne
Weight-to-torque ratio 7.7 kg/Nm, 129.4 Nm/tonne
Engine specs
Power 171 Hp @ 6600 rpm.
Power per litre 86.1 Hp/l
Torque 209 Nm @ 4400-5000 rpm.
154.15 lb.-ft. @ 4400-5000 rpm.
Engine layout Front, Transverse
Engine Model/Code M20C-FKS
Engine displacement 1987 cm3
121.25 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 80.5 mm
3.17 in.
Piston Stroke 97.6 mm
3.84 in.
Compression ratio 13:1
Number of valves per cylinder 4
Fuel injection system Direct injection and Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, VVT-iE, VVT-i
Engine oil capacity 4.3 l
4.54 US qt | 3.78 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 6.9 l
7.29 US qt | 6.07 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1615-1670 kg
3560.47 – 3681.72 lbs.
Fuel tank capacity 55 l
14.53 US gal | 12.1 UK gal
Dimensions
Length 4665 mm
183.66 in.
Width 1855 mm
73.03 in.
Height 1680 mm
66.14 in.
Wheelbase 2690 mm
105.91 in.
Front track 1595-1605 mm
62.8 – 63.19 in.
Rear (Back) track 1610-1620 mm
63.39 – 63.78 in.
Minimum turning circle (turning diameter) 11.0-11.4 m
36.09 – 37.4 ft.
Approach angle 17.8°
Departure angle 20.1°
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels permanently, and the rear wheels are driven through an electrically or mechanically operated clutch if necessary.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox 10 gears, automatic transmission CVT
Front suspension Independent type McPherson
Rear suspension Double wishbone
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 225/60 R18; 235/55 R19
Wheel rims size 18; 19
