Specifications: Toyota Yaris Cross (AC200) 1.5 (111 Hp) Hybrid eCVT 2023, 2024, 2025

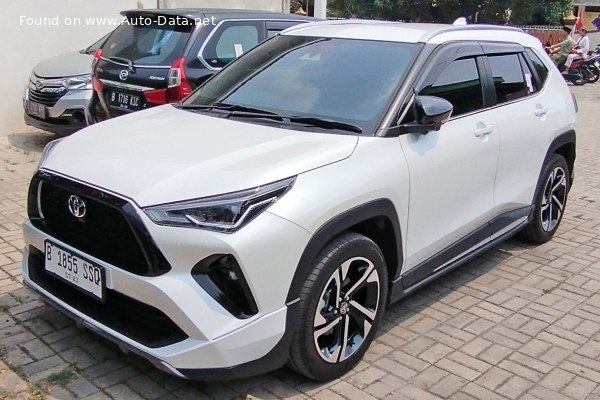

2023 Toyota Yaris Cross (AC200) - Photo 1

Toyota Yaris Cross (AC200) 1.5 (111 Hp) Hybrid eCVT – Full specifications
General information
Brand Toyota
Model Yaris Cross
Generation Yaris Cross (AC200)
Modification (Engine) 1.5 (111 Hp) Hybrid eCVT
Start of production June, 2023 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV, Crossover
Seats 5
Doors 5
Performance specs
Fuel Type Petrol (Gasoline)
Emission standard Euro 4
Electric cars and hybrids specs
Gross battery capacity 0.7 kWh
Battery technology Lithium-ion (Li-Ion)
Battery location Under the rear seats
Electric motor 1
Electric motor power 80 Hp
Electric motor Torque 141 Nm

104 lb.-ft.
Electric motor model/code 1NM
Electric motor location Integrated into the transmission
Electric motor type Synchronous
System power 111 Hp
Internal combustion engine specs
Power 91 Hp @ 5500 rpm.
Power per litre 60.8 Hp/l
Torque 121 Nm @ 4000-4800 rpm.
89.25 lb.-ft. @ 4000-4800 rpm.
Engine layout Front, Transverse
Engine Model/Code 2NR-VEX
Engine displacement 1496 cm3
91.29 cu. in.
Number of cylinders 4
Engine configuration Inline
Cylinder Bore 72.5 mm
2.85 in.
Piston Stroke 90.6 mm
3.57 in.
Number of valves per cylinder 4
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Valvetrain DOHC, Dual VVT-i
Engine systems Start & Stop System

Space, Volume and weights
Fuel tank capacity 36 l
9.51 US gal | 7.92 UK gal
Dimensions
Length 4310 mm
169.69 in.
Width 1770 mm
69.69 in.
Height 1615 mm
63.58 in.
Wheelbase 2620 mm
103.15 in.
Front overhang 860 mm
33.86 in.
Rear overhang 830 mm
32.68 in.
Ride height (ground clearance) 210 mm
8.27 in.
Minimum turning circle (turning diameter) 10.4 m
34.12 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission eCVT
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 215/55 R18
Wheel rims size 18
