Specifications: Toyota Yaris Cross (XP210) 1.5 (116 Hp) Hybrid E-Four ECVT 2020, 2021, 2022, 2023, 2024, 2025

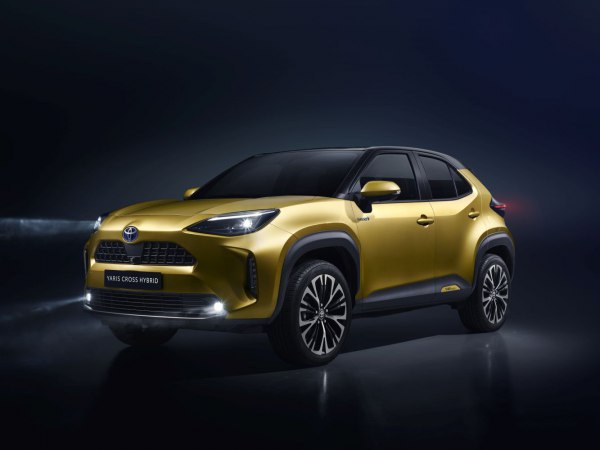

2021 Toyota Yaris Cross (XP210) - Photo 1

Toyota Yaris Cross (XP210) 1.5 (116 Hp) Hybrid E-Four ECVT – Full specifications
General information
Brand Toyota
Model Yaris Cross
Generation Yaris Cross (XP210)
Modification (Engine) 1.5 (116 Hp) Hybrid E-Four ECVT
Start of production August, 2020 year
Powertrain Architecture FHEV (Full Hybrid Electric Vehicle)
Body type SUV, Crossover
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 3.4-3.8 l/100 km
69.18 – 61.9 US mpg
83.08 – 74.34 UK mpg
29.41 – 26.32 km/l
Fuel consumption (economy) – extra urban 3.7-4 l/100 km
63.57 – 58.8 US mpg
76.35 – 70.62 UK mpg
27.03 – 25 km/l
Fuel consumption (economy) – combined 3.5-3.8 l/100 km
67.2 – 61.9 US mpg
80.71 – 74.34 UK mpg
28.57 – 26.32 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 10.8 kg/Hp, 92.8 Hp/tonne
Weight-to-torque ratio 10.4 kg/Nm, 96 Nm/tonne
Electric cars and hybrids specs
Gross battery capacity 0.76 kWh
Battery voltage 177.6 V
Battery technology Lithium-ion (Li-Ion)
Battery location Under the rear seats
Electric motor 1
Electric motor power 80 Hp
Electric motor Torque 141 Nm

104 lb.-ft.
Electric motor location Integrated into the transmission
Electric motor 2
Electric motor power 5 Hp
Electric motor Torque 52 Nm

38.35 lb.-ft.
Electric motor location Rear axle, Transverse
System power 116 Hp
Internal combustion engine specs
Power 91 Hp @ 5500 rpm.
Power per litre 61.1 Hp/l
Torque 120 Nm @ 3800-4800 rpm.
88.51 lb.-ft. @ 3800-4800 rpm.
Engine layout Front, Transverse
Engine Model/Code M15A-FXE
Engine displacement 1490 cm3
90.93 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 80.49 mm
3.17 in.
Piston Stroke 97.61 mm
3.84 in.
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 3.6 l
3.8 US qt | 3.17 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4.7 l
4.97 US qt | 4.14 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1250-1270 kg
2755.78 – 2799.87 lbs.
Max. weight 1525-1545 kg
3362.05 – 3406.14 lbs.
Max load 275 kg
606.27 lbs.
Fuel tank capacity 36 l
9.51 US gal | 7.92 UK gal
Dimensions
Length 4180 mm
164.57 in.
Width 1765 mm
69.49 in.
Height 1590 mm
62.6 in.
Wheelbase 2560 mm
100.79 in.
Front track 1515-1525 mm
59.65 – 60.04 in.
Rear (Back) track 1510-1520 mm
59.45 – 59.84 in.
Ride height (ground clearance) 170 mm
6.69 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture An Internal combustion engine (ICE) drives the front wheels, one electric motor drives the front wheels, one electric motor drives the rear wheels. There is an ability for running in full electric or mixed mode.
Drive wheel All wheel drive (4×4)
Number of gears and type of gearbox automatic transmission ECVT
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/50 R18
Wheel rims size 18
