Specifications: Toyota Yaris Cross (XP210) 1.5 (120 Hp) CVT 2020, 2021, 2022, 2023, 2024, 2025

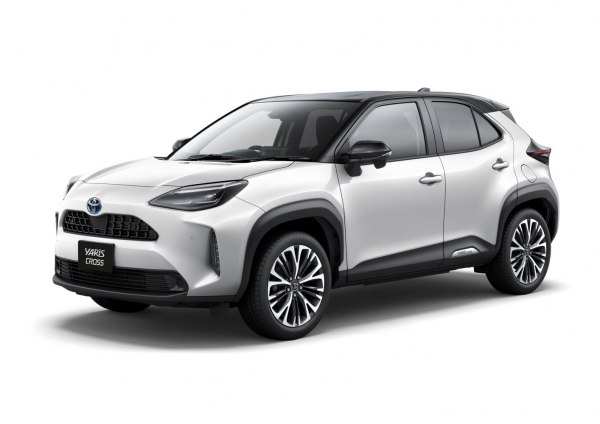

2021 Toyota Yaris Cross (XP210) - Photo 1

Toyota Yaris Cross (XP210) 1.5 (120 Hp) CVT – Full specifications
General information
Brand Toyota
Model Yaris Cross
Generation Yaris Cross (XP210)
Modification (Engine) 1.5 (120 Hp) CVT
Start of production August, 2020 year
Powertrain Architecture Internal Combustion engine
Body type SUV, Crossover
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) – urban 6.5-6.9 l/100 km
36.19 – 34.09 US mpg
43.46 – 40.94 UK mpg
15.38 – 14.49 km/l
Fuel consumption (economy) – extra urban 4.6-4.7 l/100 km
51.13 – 50.05 US mpg
61.41 – 60.1 UK mpg
21.74 – 21.28 km/l
Fuel consumption (economy) – combined 4.9-5.3 l/100 km
48 – 44.38 US mpg
57.65 – 53.3 UK mpg
20.41 – 18.87 km/l
Fuel Type Petrol (Gasoline)
Weight-to-power ratio 9.3 kg/Hp, 108.1 Hp/tonne
Weight-to-torque ratio 7.7 kg/Nm, 130.6 Nm/tonne
Engine specs
Power 120 Hp @ 6600 rpm.
Power per litre 80.5 Hp/l
Torque 145 Nm @ 4800-5200 rpm.
106.95 lb.-ft. @ 4800-5200 rpm.
Engine layout Front, Transverse
Engine Model/Code M15A-FKS
Engine displacement 1490 cm3
90.93 cu. in.
Number of cylinders 3
Engine configuration Inline
Cylinder Bore 80.5 mm
3.17 in.
Piston Stroke 97.6 mm
3.84 in.
Fuel injection system Multi-port manifold injection
Engine aspiration Naturally aspirated engine
Engine oil capacity 3.4 l
3.59 US qt | 2.99 UK qt
Engine oil specification Log in to see.Log in to see.
Coolant 4.7 l
4.97 US qt | 4.14 UK qt
Engine systems Start & Stop System
Particulate filter

Space, Volume and weights
Kerb Weight 1110-1140 kg
2447.13 – 2513.27 lbs.
Max. weight 1415 kg
3119.54 lbs.
Max load 275-305 kg
606.27 – 672.41 lbs.
Fuel tank capacity 42 l
11.1 US gal | 9.24 UK gal
Dimensions
Length 4180 mm
164.57 in.
Width 1765 mm
69.49 in.
Height 1590 mm
62.6 in.
Wheelbase 2560 mm
100.79 in.
Front track 1515-1525 mm
59.65 – 60.04 in.
Rear (Back) track 1510-1525 mm
59.45 – 60.04 in.
Ride height (ground clearance) 170 mm
6.69 in.
Minimum turning circle (turning diameter) 10.6 m
34.78 ft.
Drivetrain, brakes and suspension specs
Drivetrain Architecture The Internal combustion engine (ICE) drives the front wheels of the vehicle.
Drive wheel Front wheel drive
Number of gears and type of gearbox automatic transmission CVT
Front suspension Independent type McPherson
Rear suspension Torsion
Front brakes Ventilated discs
Rear brakes Disc
Assisting systems ABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Hydraulic Steering
Tires size 215/50 R18
Wheel rims size 18
